Picture of product CI-102

Part #: CI-102

NSN:

5985-01-573-2752

OEM:

Comant

Desc:

Marker Beacon Antenna

Part Number :



Marker Beacon (CI-102 & CI-102-2)



Frequency · 75 MHz

All Metal Blade DME/Transponder antenna designed and developed for Mach 2 military aircraft. Design is unique in that blade and mounting base are die-cast as one piece with no dielectric material in the airstream. Standard six-hole mounting configuration.

Electrical :

Frequency 75 MHz
VSWR < 1.5:1 Maximum
Polarization Parallel to the Mounting Plane
Radiation Pattern Partially Downward
Impedance RF 50 Ohms
Resistance DC DC Grounded
Power RF Receive Only

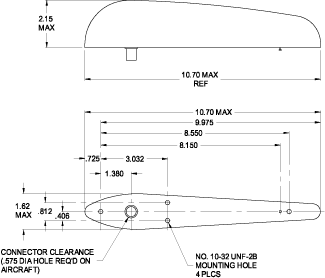

Mechanical :

Weight 0.6 lb. Maximum
Height 2.15 in. Maximum
Material Molded Radome
Finish White Polyurethane Enamel (Standard)
Connector (see above P/N's to order the choice of connector)
Gasket C10208

Environmental :

Temperature -54°C to +55°C
Altitude 45,000 ft.
Air Speed 400 Knots TAS at 25,000 ft.

Federal Specifications :

RTCA Environmental DO-160A
Environmental Category AASXXXXXXXXX
FAA TSO C35d
RTCA MOPS DO-138, DO-143
Part NumberDescription:
CI-102 Marker Beacon 4-hole Internal Mount Antenna with a BNC Connector
CI-102-2 Marker Beacon 4-hole Internal Mount Antenna with a TNC Connector



Serial # 702537
Condition NEW
Mods -
Tag Date 08/10/22
Shop Comant Industries Inc.
Warranty 1 Year
Serial # 702540
Condition NEW
Mods -
Tag Date 08/10/22
Shop Comant Industries Inc.
Warranty 1 Year
CI-102
- Marker Beacon Antenna

NSN: 5985-01-573-2752

Price Condition Status
$245.00 NEW OUTRIGHT 2 IN STOCK
