Part #: | CI-105-16 |
---|---|
Model: | CI-105-16 |
Desc: | DME/Transponder Antenna |
OEM: | Comant |
NSN: | 5985-01-562-8037 |
---|---|
Sched-B: | 8529904720 |
ECCN: | 7A994 |
Cage Code: | 51351 |

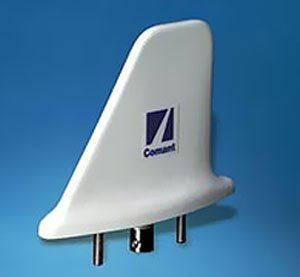

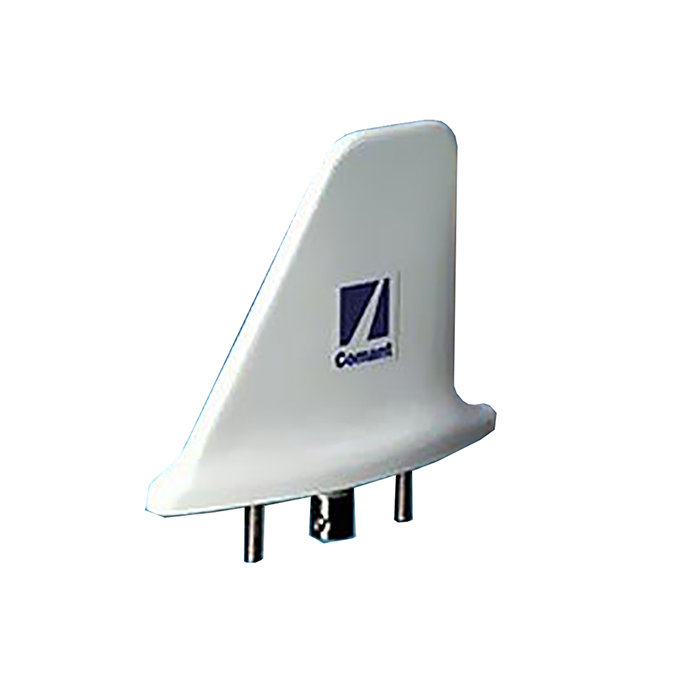

DME Transponder (CI-105-16)
FEATURES
Electrical :
Frequency | 960 to 1220 MHz 1030 to 1090 MHz |
VSWR | 1.5:1 960 to 1220 MHz 1.3:1 1030 to 1090 MHz |
Polarization | Vertical |
Radiation Pattern | Equivalent of l / 4 Stub |
Impedance RF | 50 Ohms |
Resistance DC | Open Circuit |
Power RF | 2.5 KW Peak |

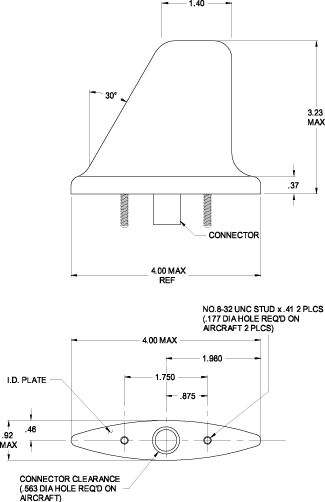

Mechanical :
Weight | 0.2 lb. Maximum |
Height | 3.23 in. Maximum |
Material | Molded Radome |
Gasket | B10505 |
Finish | White Federal Standard 595 |
Connector | BNC (female) |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 70,000 ft. |
Air Speed | 400 Knots TAS at 25,000 ft. |
Federal Specifications :
RTCA Environmental | DO-160C |
FAA TSO | C66c, C74d |
Environmental Category | [E1]-XX[C,C1,F,F1,R]XRFXXSXX [XX][XX]X[XXX]X[XXXX]XXX |
RTCA MOPS | DO-144, DO-189 |
Part Number: | Description: |
---|---|
CI-105-16 | DME Transponder Antenna with extended length stud / Internal Mounting |
Serial # | 52170 |
---|---|
Condition | NEW |
Mods | None |
Tag Date | 11/01/24 |
Shop | Comant Industries Inc. |
Warranty | 1 Year |
Serial # | 52181 |
---|---|
Condition | NEW |
Mods | None |
Tag Date | 11/01/24 |
Shop | Comant Industries Inc. |
Warranty | 1 Year |
NSN: 5985-01-562-8037
Price | Condition | Status |
---|---|---|
$255.00 | NEW OUTRIGHT | 2 IN STOCK |
