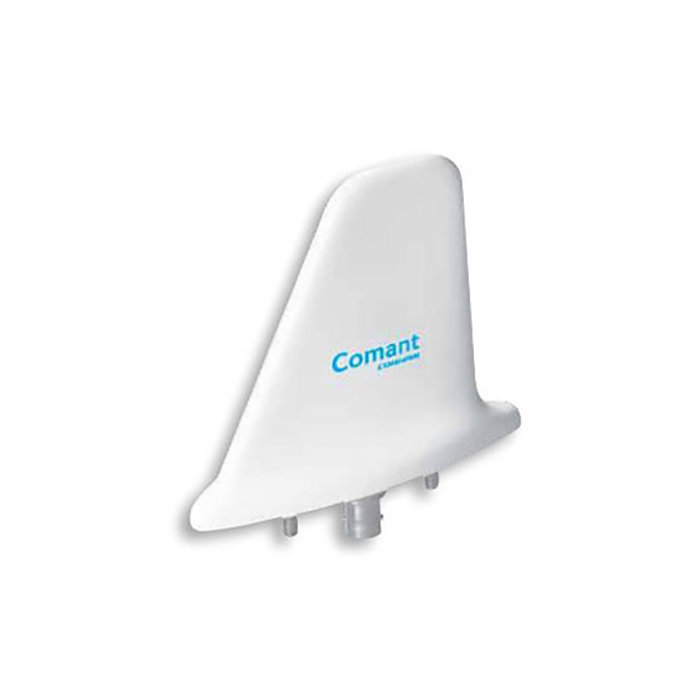

Picture of product CI-105
Part #: CI-105
Model: CI-105
Desc: DME/Transponder Antenna
OEM: Comant
NSN: 5985-01-558-5780
Sched-B: 8529104000
ECCN: 7A994
Cage Code: 51351
Part Number :





DME Transponder (CI-105 Series)

  • Frequency · 960-1220 MHz & 1030-1090 MHz
  • Broadband and rugged antenna designed for DME or transponder use
  • Antenna assembly encased in a glass reinforced polyester molded shell
  • Standard two stud mounting configuration
  • CI-105 includes a BNC connector



Electrical :

Frequency 960 to 1220 MHz 1030 to 1090 MHz
VSWR 1.5:1 960 to 1220 MHz 1.3:1 1030 to 1090 MHz
Polarization Vertical
Radiation Pattern Equivalent of l / 4 Stub
Impedance 50 Ohms
Resistance DC Open Circuit
Power RF 2.5 KW Peak

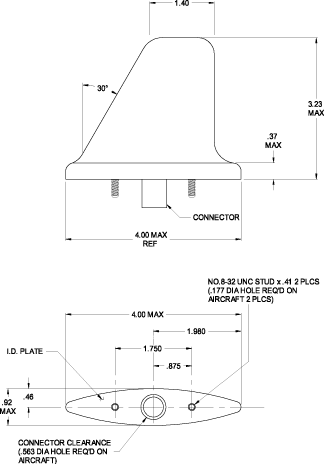

Mechanical :

Weight 0.24 lb. Maximum
Height 3.23 in. Maximum
Material Molded Radome
Finish White Polyurethane Enamel (Standard)
Connector BNC (female)
Gasket B10006



Environmental :

Temperature -54°C to +55°C
Altitude 70,000 ft.
Air Speed 400 Knots TAS at 25,000 ft.



Federal Specifications :

RTCA Environmental DO-160C
Environmental Category [E1]-B[CLY]XRHXXXXXXXXXXXXXX
FAA TSO C66b, C74c
RTCA MOPS DO-144, DO-189



Part Number: Description:
CI-105 DME Transponder Antenna with Internal Mounting



Serial # 118135
Condition NEW
Mods -
Tag Date 11/12/24
Shop Thales Aerospace Communications Fullerton Inc.
Warranty 1 Year
Serial # 118154
Condition NEW
Mods -
Tag Date 11/12/24
Shop Thales Aerospace Communications Fullerton Inc.
Warranty 1 Year
CI-105
- DME/Transponder Antenna

NSN: 5985-01-558-5780

Price Condition Status
$295.00 NEW OUTRIGHT 2 IN STOCK
