NSN: |
5985-01-376-0307 |
OEM: |
Comant |
Desc: |
Radiotelephone Antenna |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
UHF Radiotelephone (CI-106 Series)
Stub antenna designed to withstand the environment associated with the underside of an aircraft. Antenna radiator is mechanically captivated and sealed against leakage. All exposed metal surfaces are nickel-plated for corrosion resistance and long service.
Electrical :
Frequency | 450 to 470 MHz |
VSWR | 1.5:1 MHz Maximum |
Polarization | Vertical |
Radiation Pattern | Equivalent of l / 4 Stub |
Impedance | 50 Ohms |
Power RF | 50 Watts Average |

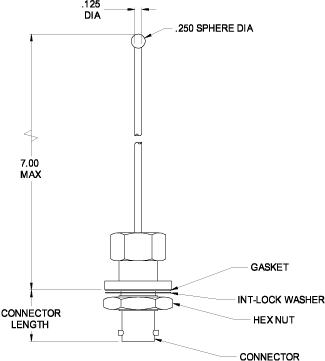

Mechanical :
Weight | 0.18 lb. Maximum |
Height | 7.0 in. Maximum |
Material | Nickel plated brass |
Finish | Tin nickel alloy |
Connector | (see above P/N's to order the choice of connector) |
Environmental :
Air Speed | 250 Knots TAS |
Part Number | Description: |
---|---|
CI-106 | UHF Radiotelephone Antenna with a BNC Connector |
CI-106-2 | UHF Radiotelephone Antenna with a TNC Connector |
CI-106-3 | UHF Radiotelephone Antenna with a C Connector |
CI-106-5 | UHF Radiotelephone Antenna with an N Connector |
NSN: 5985-01-376-0307
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
