Part #: | CI-110-41-30 |
---|---|
Model: | CI-110-41-30 |

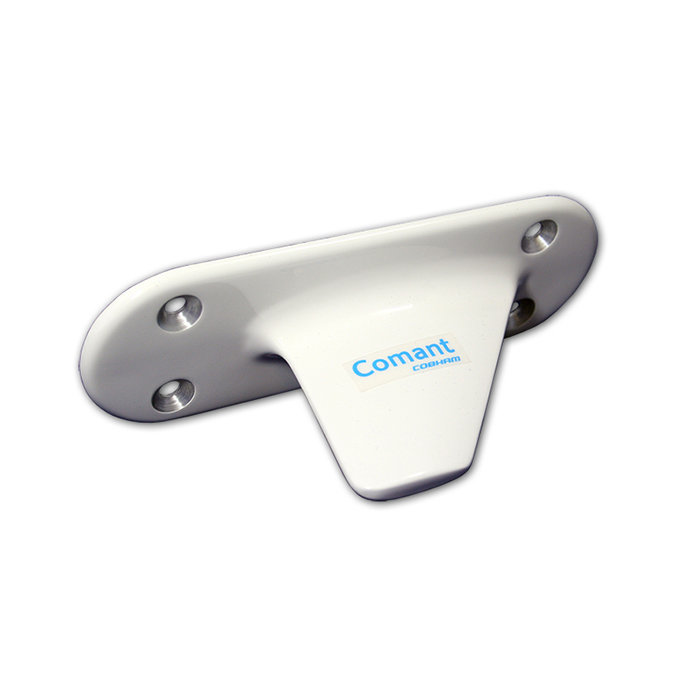

Desc: | DME/Transponder Antenna (Blade, C Conn) |
OEM: | Comant |
NSN: | |
---|---|
Sched-B: | 8529104040 |
ECCN: | 7A994 |
FEATURES
SPECIFICATIONS
Application: | Airborne ELT | Frequency: | 960-1220 MHz |
Impedance rf: | 50 Ohms | VSWR: | 1.5:1 Maximum |
Polarization: | Vertical | radiation Pattern: | Omnidirectional - Equiv. 1/4 wave stub |
Resistance DC: | Short Circuit | Power RF: | 3.0 KW Peak / 100 watt average |
Weight: | 0.25 lbs | Height: | 2.25 inches |
Finish: | Gloss White Polyurethane Enamel | Connector: | C (female) |
Temperature: | -55 C to +85 C | Altitude: | 70,000 ft. |
Airspeed: | 600 KTAS at 25,000 ft. | FAA TSO: | C66c, C74c, C112 (Class 1A) (RTCA Environmental DO-160D) |
Part Number: | Description: |
---|---|
ci-110-41-30 | DME/Transponder Antenna (Blade, C Conn) |
Serial # | 739646 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 11/09/23 |
Shop | Comant Industries Inc. |
Warranty | 1 Year |
Price | Condition | Status |
---|---|---|
$565.00 | NEW OUTRIGHT | 1 IN STOCK |
