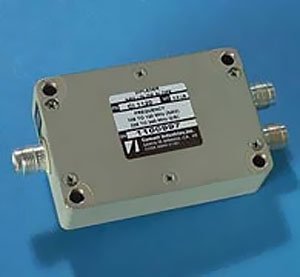

Picture of product CI-1120

Part #: CI-1120






Single Glidelope & VOR Diplexer

Part Number :

Diplexer Single VOR/Single GS (CI-1120)

Frequency · 108-120 MHz & 325-340 MHz

Provides operation between a single VOR receiver and a single glide slope receiver from the same VOR/glide slope antenna. Offers polarized VOR and GS output connectors. For military applications.

Electrical :

Frequency 108 - 120 and 325 - 340 MHz
VSWR 1.5:1 Maximum
Insertion Loss 0.5 dB Maximum
Isolation 40 dB Minimum
Impedance RF 50 Ohms

Mechanical :

Weight 0.44 lb. Maximum
Height 0.812 in. Maximum
Material Die Cast Aluminium
Finish Flat Grey Epoxy Paint
Connector TNC (Female)

Environmental :

  Internal Mount

Federal Specifications :

MIL Standards MIL-E-5400
  MIL-STD-810B (Vibration)
  MIL-C-39012 (Connector)
Part NumberDescription:
CI-1120 Single Glide Slope and VOR Diplexer


- Single Glidelope & VOR Diplexer

NSN: 5985-01-050-2798
