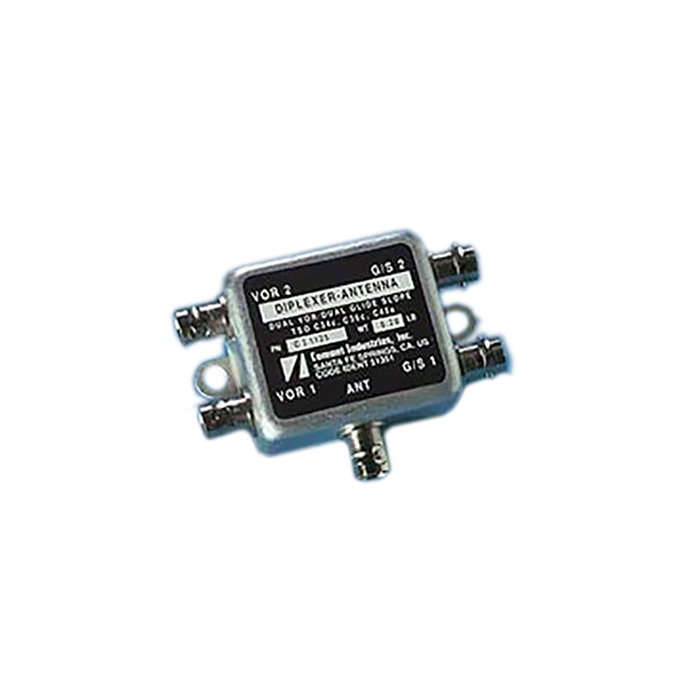

Picture of product CI-1125

Part #: CI-1125

NSN:

5985-01-541-4453

OEM:

Comant

Desc:

DUAL VOR/DUAL G/S DIPLEXER

Part Number :



Diplexer Dual VOR/Dual GS (CI-1125)

Frequency · 108-118 MHz & 329-335 MHz

Dual VOR/dual glide slope diplexer features diplexer circuitry in a small die-stamped housing for high reliability. Provides operation between two VOR receivers and two glide slope receivers from the same VOR/glide slope antenna. Electrical :

Frequency 108 - 118 and 329 - 335 MHz
VSWR 1.5:1 Maximum
Insertion Loss 0.6 dB Maximum
Isolation 20 dB Minimum between VOR & GS 18 dB Minimum between VOR Ports 18 dB Minimum between GS Ports
Impedance RF 50 Ohms

Mechanical :

Weight 0.25 lbs. Maximum
Height 0.75 in. Maximum
Material Aluminum
Finish Aluminum
Connector (see above P/N's to order the choice of connector)

Environmental :

  Internal Mount

Federal Specifications :

FAA TSO C34c, C36c, C40a



Part Number Description:
CI-1125 Dual VOR / Dual GS Diplexer with a BNC Connector
CI-1125-TNC Dual VOR / Dual GS Diplexer with a TNC Connector



Serial # 669968
Condition NEW
Mods -
Tag Date 10/08/21
Shop Comant Industries Inc.
Warranty 1 Year
CI-1125
- DUAL VOR/DUAL G/S DIPLEXER

NSN: 5985-01-541-4453

Price Condition Status
$300.00 NEW OUTRIGHT 1 IN STOCK
