Part #: | CI-120-5 |
---|---|
Model: | CI-120-5 |
Desc: | Dual Output Power Combiner |
OEM: | Comant |
NSN: | |
---|---|
ECCN: |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
Power Combiner VOR/GS (CI-120-5)

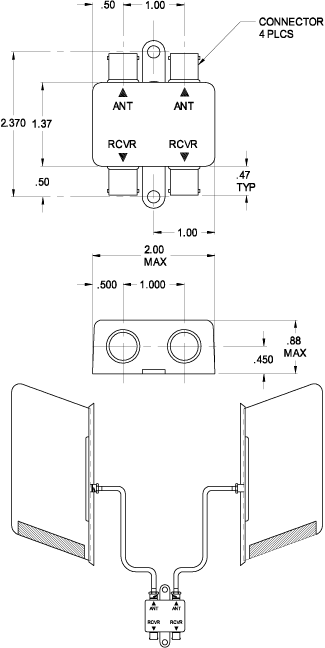

Two input - two output Power Combiner is standard equipment with Comant's CI-120-200 G/S-L as supplied to Cessna. A typical CI-120-200 G/S-L set up is depicted in the inset of this page. The CI-120-5 provides for two separate cable runs to the avionics installation for NAV 1 and NAV 2 receivers.
Electrical :
Frequency | 108 - 118 and 329 - 335 MHz |
Power Split | 6 dB |
VSWR | 1.5:1 Maximum |
Insertion Loss | 1.5 dB Maximum |
Isolation | 20 dB Minimum |
Amplitude Balance | ±0.5dB |
Impedance RF | 50 Ohms Nominal |
Phase | 180° ±1° Between Antenna Ports 0° ±5° Between Receiver Ports |
Mechanical :
Weight | 0.1 lb. Maximum |
Height | 0.88 in. Maximum |
Material | Die Cast Aluminum |
Finish | Aluminum |
Connector | BNC (Female) |
Environmental :
Internal Mount |
Federal Specifications :
RTCA Environmental | DO-160C |
Environmental Category | [A2F2]-AC[CLMY]XRXXXSXXXXXXXC |
FAA TSO | C34c, C36c, C40a |
RTCA MOPS | DO-192, DO-195, DO-196 |
Part Number | Description: |
---|---|
CI-120-5 | Two Input -- Dual Output Power Combiner |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
