Part #: | CI-138 |
---|---|
Model: | CI-138 |
Desc: | VHF Comm Antenna (Beechcraft) |
OEM: | Comant |
NSN: | |
---|---|
Sched-B: | 8829104000 |
ECCN: | 7A994 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
VHF Communications (CI-138)
Frequency · 118-137 MHz

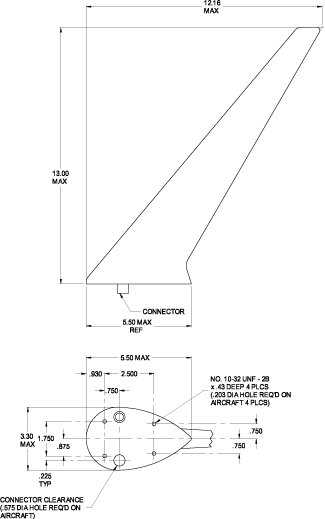

Identical to the CI-119 with the exception of the mounting hole pattern and RF connector location which are compatible with Beechcraft mounting. RF connector is offset from the centerline of the antenna. The CI-138 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS. Electrical :
Frequency | 118 - 137 MHz |
VSWR | 2.5:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms |
Power | 25 Watts |
Mechanical :
Weight | 1.0 lb. Maximum |
Height | 13.0 in. Maximum |
Material | Valox 420 |
Finish | White Polyurethane Enamel |
Connector | BNC (female) |
Gasket | C13804 Cork Neoprene |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 50,000 ft. |
Air Speed | 350 Knots TAS @ 25,000 ft. |
Federal Specifications :
RTCA Environmental | [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX |
FAA TSO | C37d, C38d |
RTCA MOPS | DO-186A |
Part Number | Description: |
---|---|
CI-138 | VHF Offset Connector Blade Antenna for Beechcraft |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
