Part #: | CI-139 |
---|---|
Model: | CI-139 |
Desc: | VHF Comm Blade Antenna (Piper) |
OEM: | Comant |
NSN: | 5985-01-329-2827 |
---|---|
Sched-B: | 8529104000 |
ECCN: | 7A994 |
Cage Code: | 51351 |
VHF Communications (CI-139)
Frequency · 118-137 MHz
Piper compatible mounting version of the CI-119 with respect to the mounting hole pattern and RF connector location. The CI-139 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.
Electrical :
Frequency | 118 - 137 MHz |
VSWR | 2.5:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms |
Power | 25 Watts |

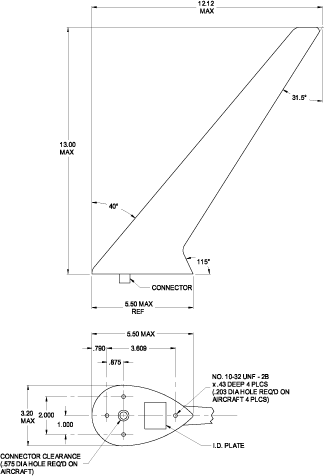

Mechanical :
Weight | 1.25 lb. Maximum |
Height | 13.0 in. Maximum |
Material | Valox 420 |
Finish | White Polyurethane Enamel |
Connector | BNC (Female) |
Gasket | C13904 Cork Neoprene |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 50,000 ft. |
Air Speed | 350 Knots TAS @ 25,000 ft. |
Federal Specifications :
RTCA Environmental | DO-160D |
Environmental Category | [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX |
FAA TSO | C37d, C38d |
RTCA MOPS | DO-186A |
Part Number | Description: |
---|---|
CI-139 | VHF Blade Antenna for Piper |
Serial # | 774485 |
---|---|
Condition | NEW |
Mods | None |
Tag Date | 12/17/24 |
Shop | Comant Industries Inc. |
Warranty | 1 Year |
NSN: 5985-01-329-2827
Price | Condition | Status |
---|---|---|
$745.00 | NEW OUTRIGHT | 1 IN STOCK |
