Part #: | CI-158C |
---|---|
Model: | CI-158C |
Desc: | VOR/Glideslope Antenna |
OEM: | Comant |
NSN: | |
---|---|
Sched-B: | 8529104000 |
ECCN: | 7A994 |
VOR/GS (CI-158C)
Frequency · 108-118 MHz (VOR/LOC) · 329-335 MHz (Glide Slope)

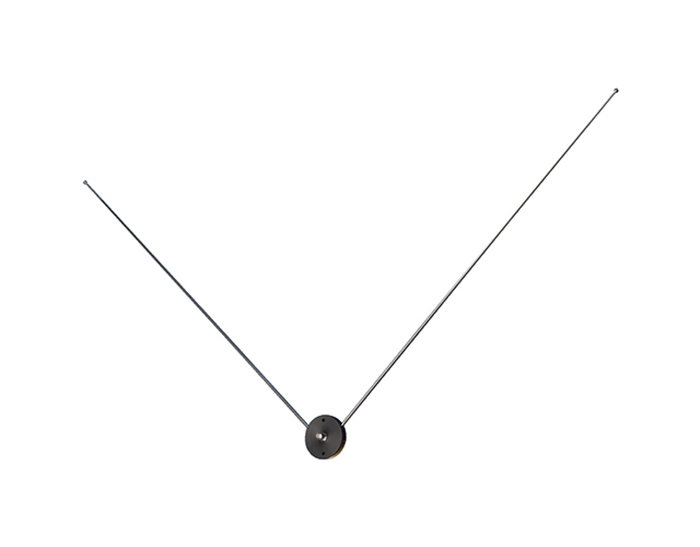

"V" Dipole VOR/Glide Slope Antenna with detachable elements mounts on top of the vertical fin stabilizer for most single engine general aviation aircraft. RF design similar to the CI-157P. Integral ferrite balun provides for higher radiation efficiency. Detachable element results in a significantly smaller shipping and storage carton than fixed element versions. Not approved for helicopter installations. Electrical :
Frequency | 108 - 118 MHz (VOR / LOC) 329 - 335 MHz (Glide Slope) |
VSWR | 6.0:1 108 - 118 MHz (VOR / LOC) 2.5:1 329 - 335 MHz (Glide Slope) |
Polarization | Horizontal |
Radiation Pattern | Dipole |
Impedance | 50 Ohms Nominal |
Power | Receive Only |
Mechanical :
Weight | 0.35 lb. Maximum |
Height | 17-5/8 in. Maximum |
Material | Delrin housing / Stainless whips |
Finish | Black housing / Stainless whips |
Connector | BNC |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 50,000 ft. |
Air Speed | 250 Knots TAS @ 25,000 ft. |
Federal Specifications :
RTCA Environmental | DO-160 |
Environmental Category | B2ALXXXXXXXXXXX |
FAA TSO | C34c, C38c, C40c |
RTCA MOPS | DO-192, DO-195, DO-196 |
Part Number | Description: |
---|---|
CI-158C | VOR/GS "V" Dipole Antenna with 2-hole mounting |
Serial # | 757948 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 05/09/24 |
Shop | Comant Industries Inc. |
Warranty | 1 Year |
Price | Condition | Status |
---|---|---|
$515.00 | NEW OUTRIGHT | 1 IN STOCK |
