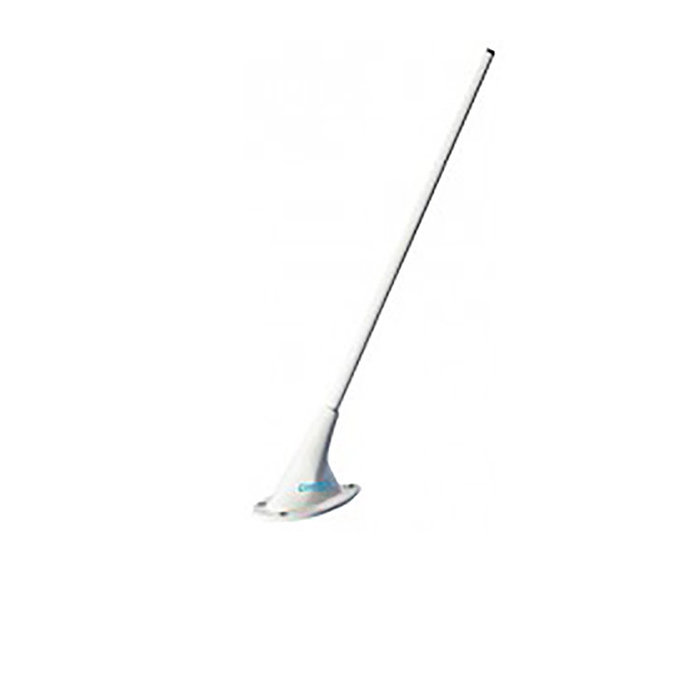

Picture of product CI-177-1

Part #: CI-177-1

OEM:

Comant

Desc:

FM Extended Band Antenna

Part Number :



CI 177-1



FEATURES

  • 4 hole mounting with the radiating element enclosed in a high strength tapered glass laminate housing
  • Improved bandwidth provides greater flexibility by optimizing features of some of the newer transceivers
  • Radiating element is enclosed in a high strength
  • Tapered glass laminate housing
  • FM / 2 Meter
  • Frequency · 138-174 MHz
  • Wider band version of the CI-177



SPECIFICATIONS

Electrical :

Frequency 138 - 174 MHz
VSWR 2.5:1 Maximum
Polarization Vertical
Radiation Pattern Omnidirectional
Impedance 50 Ohms
Power RF 50 Watts



Mechanical :

Weight 0.5 lb. Maximum
Height 15.30 in. Maximum
Material Die Cast housing / Fiberglass whip
Finish White Polyurethane Enamel
Connector BNC (female)
Gasket B12607-3



Environmental :

Temperature -55°C to +55°C
Altitude 30,000 ft.
Air Speed 450 Knots at 25,000 ft.



Federal Specifications :

RTCA Environmental DO-138
FAA TSO C37b, Class1, C38b
Environmental Category BAJXXXXXXXXXXX













Part Number: Description:
CI-177-1 FM  Extended Band Antenna







Serial # 754284
Condition NEW
Mods -
Tag Date 03/20/24
Shop Comant Industries Inc.
Warranty 1 Year
CI-177-1
- FM Antenna
Price Condition Status
$575.00 NEW OUTRIGHT 1 IN STOCK
