Part #: | CI-193 |
---|---|
Model: | CI-193 |
Desc: | Glide Slope Antenna |
OEM: | Comant |
NSN: | 5985-01-534-6268 |
---|---|
Sched-B: | 8529104000 |
ECCN: | 7A994 |
Cage Code: | 51351 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
Glide Slope (CI-193)
Frequency · 329-335 MHz
Half wave dipole designed for interior mounting. Integral ferrite balun can result in improved performance when propeller modulation is a problem. Electrical :
Frequency | 329 - 335 MHz |
VSWR | 2.0:1 MHz Maximum |
Polarization | Horizontal |
Radiation Pattern | Dipole |
Impedance | 50 Ohms |
Power RF | Receive Only |
Gain | 2.0 dB Nominal |

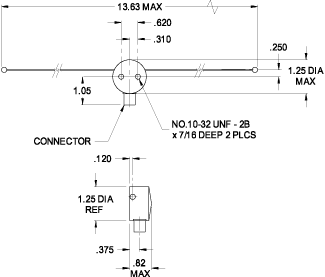

Mechanical :
Weight | 0.15 lb. Maximum |
Height | 1.5 in. Maximum |
Material | Delrin housing / Brass radiators |
Finish | Black / nickel |
Connector | BNC |
Environmental :
Temperature | -55°C to +55°C (Internal Mount) |
Federal Specifications :
RTCA Environmental | DO 160 |
Environmental Category | D2ALXXXXXXXXXXX |
Environmental Category | BAJXXXXXXXXXXX |
FAA TSO | C34c |
RTCA MOPS | DO-192 |
Part Number | Description: |
---|---|
CI-193 | Glide Slope Dipole Interior Mount Antenna |
NSN: 5985-01-534-6268
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
