NSN: |
|
OEM: |
Comant |
Desc: |
VHF Comm Antenna |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
VHF Communications (CI-196)
Frequency · 118-137 MHz
Identical to the CI-119. Matches the styling and mounting configuration of the late model Mooney 201/231/252 aircraft series starting in 1978. The CI-196 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS. Electrical :
Frequency | 118 - 137 MHz |
VSWR | 2.5:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms |
Power | 25 Watts |

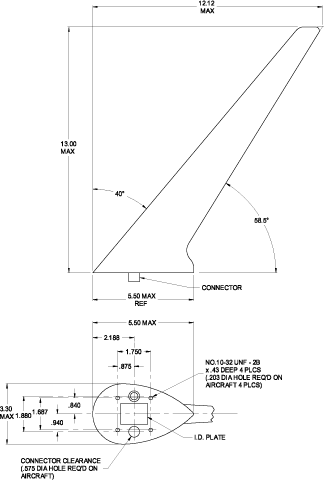

Mechanical :
Weight | 1.25 lb. Maximum |
Height | 13.0 in. Maximum |
Material | Valox 420 |
Finish | White Polyurethane Enamel |
Connector | BNC (female) |
Gasket | B19604 |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 50,000 ft. |
Air Speed | 350 Knots TAS @ 25,000 ft. |
Federal Specifications:
RTCA Environmental | DO-160D |
Environmental Category | [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX |
FAA TSO | C37d, C38d |
RTCA MOPS | DO-186A |
Part Number | Description: |
---|---|
CI-196 | VHF Blade Antenna (matching Mooney '79 & later models) |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
