NSN: |
|
OEM: |
Comant |
Desc: |

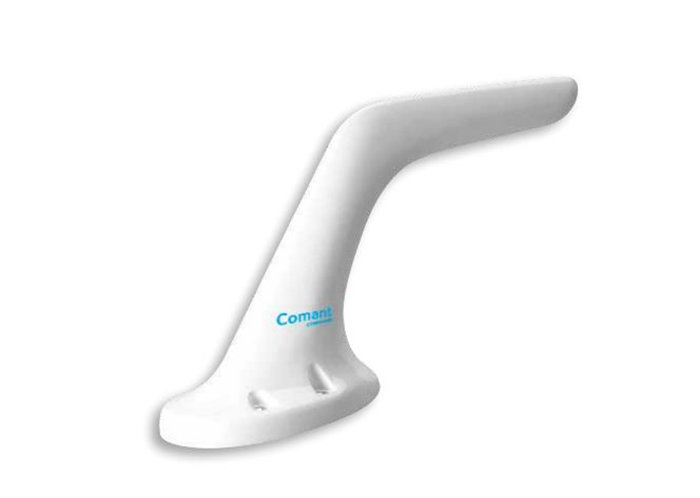

VHF Blade Antenna (w/ Leading Edge Protection) |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
CI-211-1-L
FEATURES
SPECIFICATIONS
Electrical :
Frequency | 118 to 137 MHz |
VSWR | 2.9:1 MHz Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms |
Power RF | 30 Watts C.W. |

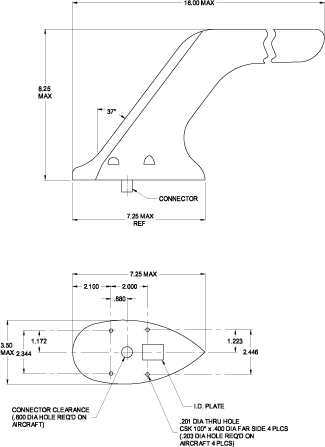

Mechanical :
Weight | 1.6 lbs. Maximum |
Height | 8.25 in. Maximum |
Material | High Density Polyurethane |
Finish | White Polyurethane Enamel |
Connector | BNC (female) |
Gasket | C21104 Cork Neoprene |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 50,000 ft. |
Air Speed | 573 Knots TAS or 0.88 Mach at 45,000 ft. |
Federal Specifications :
RTCA Environmental | DO-160D |
Environmental Category | [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX |
FAA TSO | C37d, C38d |
RTCA MOPS | DO-186A |
Part Number: | Description: |
---|---|
CI-211-1 | VHF Blade Antenna, w/Leading Edge Protection (Extended Band) |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
