Part #: | CI-211-16 |
---|---|
Model: | CI-211-16 |
Desc: | VHF Comm Blade Antenna |
OEM: | Comant |
NSN: | |
---|---|
Sched-B: | 8529104000 |
ECCN: | 7A994 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|

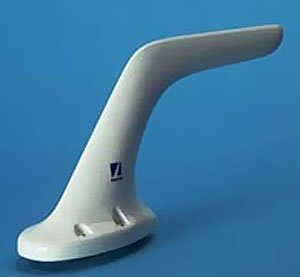

VHF Extended Band (CI-211-16)
Frequency · 118-153 MHz

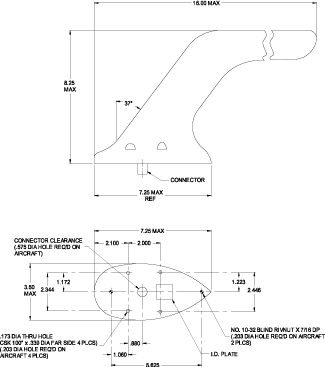

Intended for installation on long-range executive jet and turbo-prop aircraft capable of operating in Europe, Asia and South America where VHF communication is available over a much wider band. Only 8.25" high, yet provides good performance without the added drag of taller blade communication antennas. The CI-211-16 is identical to the CI-211-1 except it also includes one internal mounting hole forward and one internal mounting hole aft on the antenna centerline as shown in outline drawing. The CI-211-16 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements. Electrical :
Frequency | 118 to 153 MHz |
VSWR | 2.75:1 MHz Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms |
Power RF | 30 Watts C.W. |
Mechanical :
Weight | 1.6 lbs. Maximum |
Height | 8.25 in. Maximum |
Material | High Density Polyurethane |
Finish | White Polyurethane Enamel |
Connector | BNC (female) |
Gasket | C21104 Cork Neoprene |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 50,000 ft. |
Air Speed | 573 Knots TAS or 0.88 Mach at 45,000 ft. |
Federal Specifications :
RTCA Environmental | DO-160D |
Environmental Category | [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX |
FAA TSO | C37d, C38d |
RTCA MOPS | DO-186A |
Part Number | Description: |
---|---|
CI-211-16 | VHF Blade Antenna -- 118 to 153 MHz with 6-hole Mount |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
