Part #: | CI-215 |
---|---|
Model: | CI-215 |
Desc: | VOR/GS Antenna (Cessna Special Mount) |
OEM: | Comant |
NSN: | 5985-01-527-3529 |
---|---|
Sched-B: | 8529109000 |
ECCN: | 7A994 |
Cage Code: | 51351 |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|

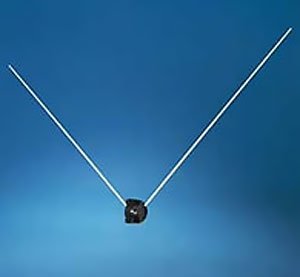

VOR/Glideslope (CI-215)
Frequency · 108-118 MHz (VOR/LOC) · 329-335 MHz (Glide Slope)

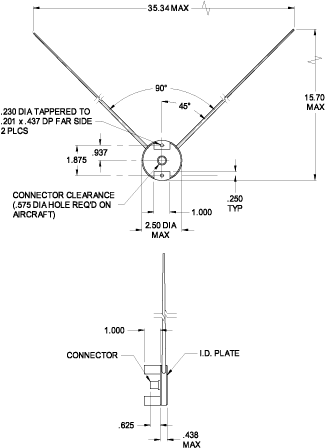

"V" Dipole VOR/Glide Slope Antenna with Detachable Elements features two integrally molded mounting legs or "spacers" for increased strength. Radiating elements are laminated with polyester glass material for improved precipitation static protection. Interchangeable with the VOR/GS antenna used on most Cessna single-engine aircraft since 1980 including the Cessna 182 and 210 models. Not approved for helicopter installations. Electrical :
Frequency | 108 - 118 MHz (VOR / LOC) 329 - 335 MHz (Glide Slope) |
VSWR | 6.0:1 108 - 118 MHz (VOR / LOC) 3.0:1 329 - 335 MHz (Glide Slope) |
Polarization | Horizontal |
Radiation Pattern | Dipole |
Impedance | 50 Ohms Nominal |
Power | Receive Only |
Mechanical :
Weight | 0.35 lb. Maximum |
Height | 16.00 in. Maximum |
Material | Delrin housing / Glass laminate whips / SS radiatorss |
Finish | Black housing / White Polyurethane enamel |
Connector | BNC |
Environmental :
Temperature | -55°C to +85°C |
Altitude | 50,000 ft. |
Air Speed | 250 Knots TAS @ 25,000 ft. |
Federal Specifications :
RTCA Environmental | DO-160 |
Environmental Category | C2ALXXXXXXXXXXX |
FAA TSO | C34c, C38c, C40a |
RTCA MOPS | DO-192, DO-195, DO-196 |
Part Number | Description: |
---|---|
CI-215 | VOR/GS "V" Dipole Antenna with special mount for Cessna aircraft |
NSN: 5985-01-527-3529
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
