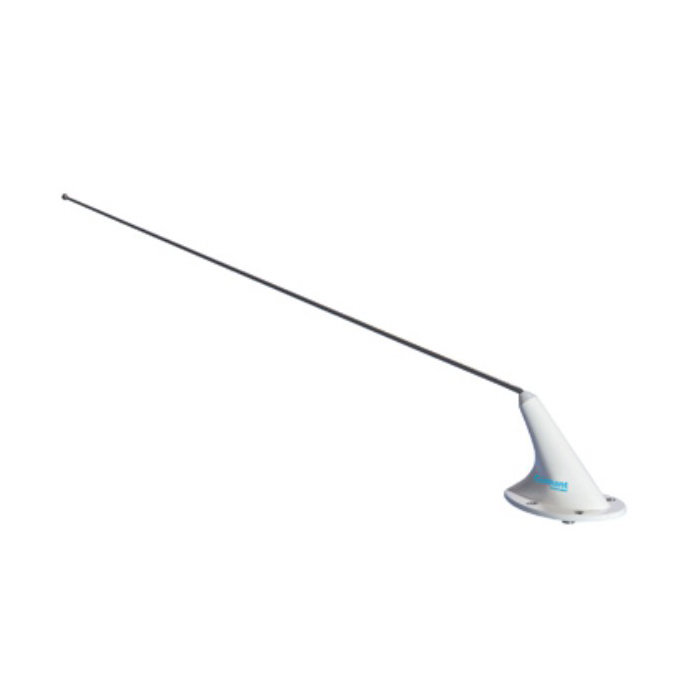

Picture of product CI-222-1
Part #: CI-222-1
Model: CI-222-1
Desc: FM Antenna
OEM: Comant
Sched-B: 8529109000
ECCN: 7A994
Part Number :



AM/FM Receive (CI-222-1)

  • Frequency 88-108 MHz
  • Efficient FM radio bent whip antenna is higher performance and moderately higher profile version of the CI-222
  • 4-hole mounting
  • Suitable for either top or bottom airframe installations or fixed wing/rotorcraft
  • DC grounded



Electrical :

Frequency 88 - 108 MHz
VSWR 3.0:1 Maximum
Polarization Vertical
Radiation Pattern Omnidirectional
Impedance 50 Ohms
Power 50 Watts

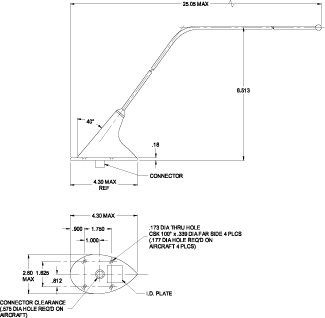

Mechanical :

Weight 0.5 lb. Maximum
Height 8.5 in. Maximum
Material Cast zinc housing / Stainless whip
Finish White Polyurethane Enamel
Connector BNC (female)
Gasket B12607-3

Environmental :

Air Speed 450 Knots TAS @ 25,000 ft.





Part Number Description:
CI-222-1 High Efficiency FM Bent Whip Antenna



Serial # 743214
Condition NEW
Mods -
Tag Date 06/11/24
Shop Comant Industries Inc.
Warranty 1 Year
CI-222-1
- FM Antenna
Price Condition Status
$660.00 NEW OUTRIGHT 1 IN STOCK
