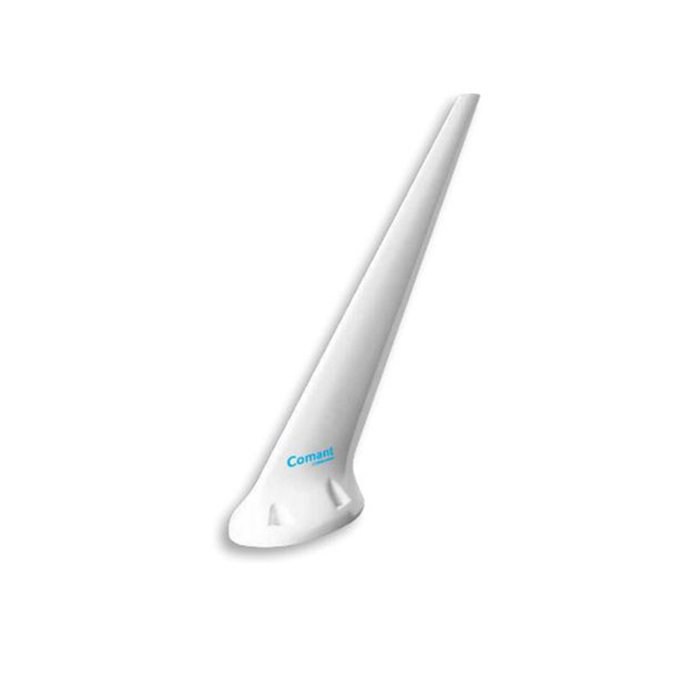

Picture of product CI-268-5

Part #: CI-268-5

NSN:

5985-01-691-4505

OEM:

Comant

Desc:

VHF Comm Antenna

Part Number :






CI-268-5
FEATURES
  • CI 268-5 uses the same radome as our multi-function ComDat antennnas
  • Features the same super-tough nickel plated aluminum base plate with integral Nitrile ‘O’ ring for pressurized applications found on all ComDat models
  • The only VHF antenna with a built-in notch filter, that allows installation in close proximity to GPS antennas without co-sight interference

SPECIFICATIONS
frequency: 118-137 MHz vswr: 2.9:1 Maximum
Polarization:  Vertical radiation pattern: Omnidirectional
impedance rf: 50 Ohms power rf: 50 Watts
harmonic rejection: 80 dB Typical weight: 1.25 lbs Max.
height: 14.1 inches Max. material: Molded Glass Filled Nylon
finish: White Polyurethane Enamel connector: BNC (female)
temperature: -55 to +85 Celsius altitude: 35,000 ft.
faa tso: C37d, C38d rtca environmental: DO-160D





Part Number Description
ci-268-5 VHF Comm Antenna





Serial # 748993
Condition NEW
Mods -
Tag Date 03/06/24
Shop Comant Industries Inc.
Warranty 1 Year
CI-268-5
- VHF Comm Antenna

NSN: 5985-01-691-4505

Price Condition Status
$1,325.00 NEW OUTRIGHT 1 IN STOCK
