Picture of product CI-285

Part #: CI-285

NSN:

6210-01-113-8933

OEM:

Comant

Desc:

UHF Blade Antenna

Part Number :





CI-285

FEATURES

  • UHF blade antenna design for high performance aircraft over the full frequency range of 400-960 MHz
  • Low profile, low drag, light weight antenna is packaged in a molded body and metal mounting base to ensure stable performance in tough environmental conditions
  • Features vertically polarized/omnidirectional pattern, extremely wide band/high efficient electrical performance
  • DC grounding for lightning protection, 6 hole mounting


SPECIFICATIONS

fREQUENCY: 400 to 960 MHz Weight: 0.75 lbs. max
Finish: White Polyurethane Enamel vswr: 2.0:1  Maximum
polarization: Vertical radiation pattern: Equivalent of l / 4 Stub
impedance: 50 Ohms power rf: 100 Watts Average

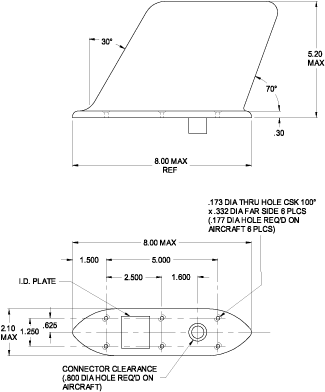

height: 5.20 in. Maximum material: Lexan
connector: N (Female) air speed: 600 Knots TAS at 25,000 ft.
TEMPERATURE: -55°C to +70°C altitude: 50,000 ft.









Part Number: Description:
CI-285 UHF Radiotelephone Antenna -- N Connector, 6-hole mounting



Serial # 709089
Condition NEW
Mods -
Tag Date 12/06/22
Shop Cobham Antenna Systems
Warranty 1 Year
Serial # 709090
Condition NEW
Mods -
Tag Date 12/06/22
Shop Cobham Antenna Systems
Warranty 1 Year
Serial # 709093
Condition NEW
Mods -
Tag Date 12/06/22
Shop Cobham Antenna Systems
Warranty 1 Year
Serial # 708850
Condition NEW
Mods -
Tag Date 11/03/22
Shop Cobham Antenna Systems
Warranty 1 Year
Serial # 708854
Condition NEW
Mods -
Tag Date 11/03/22
Shop Cobham Antenna Systems
Warranty 1 Year
Serial # 708858
Condition NEW
Mods -
Tag Date 11/03/22
Shop Cobham Antenna Systems
Warranty 1 Year
Serial # 708859
Condition NEW
Mods -
Tag Date 11/03/22
Shop Cobham Antenna Systems
Warranty 1 Year
CI-285
- UHF Blade Antenna

NSN: 6210-01-113-8933

Price Condition Status
$1,395.00 NEW OUTRIGHT 7 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
