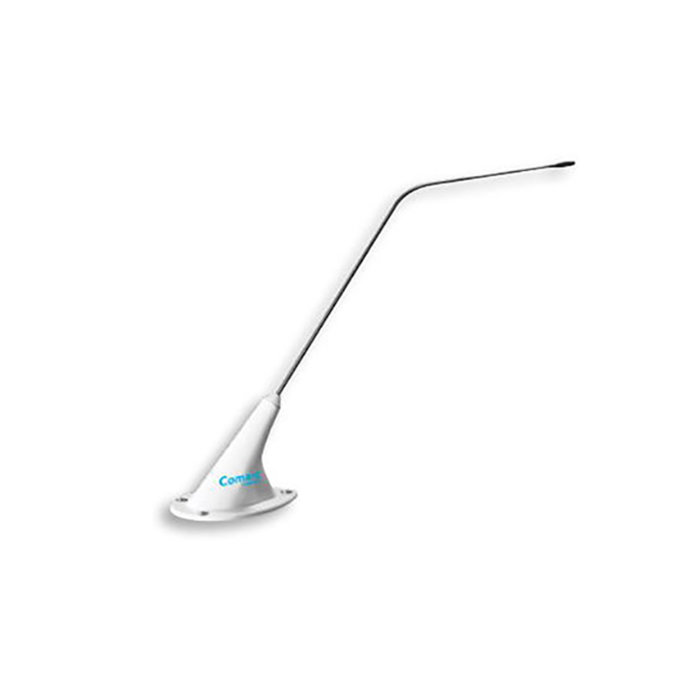

Picture of product CI-292-2
Part #: CI-292-2
Model: CI-292-2
Desc: VHF Comm Antenna
OEM: Comant
NSN: 5985-01-524-3427
Sched-B: 8529104000
ECCN: 7A994
Cage Code: 51351
Part Number :



CI-292-2
FEATURES



  • Identical to the CI 292-1 except thais it provides a stainless steel bent-whip radiator
  • Ideal for helicopters and bottom mounting underneath fixed wing aircraf
  • The CI 292-2 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements
  • Offers the 118 to 137 MHz frequency associated with DO 186 MOPS


SPECIFICATIONS
fREQUENCY: 118-137 MHz VSWR: 3.0:1 Maximum
pOLARIZATION: Vertical RADIATION PATTERN: Omnidirectional
IMPEDANCE RF: 50 Ohms POWER RF: 50 Watts
WEIGHT: 0.6 lbs Max HEIGHT: 8.5 inches / 23.5 inches total length
MATERIAL: Cast Housing / Stainless steel whip FINISH: Polyurethane Enamel
CONNECTOR: BNC (female) TEMPERATURE: -55 to +85 Celsius
ALTITUDE: 50,000 ft FAA TSO: C37d, C38d
RTCA environmental: DO-160D gasket: C29205 Cork Neopren
Part Number: Description:
ci-292-2 VHF Comm Antenna







Serial # 771059
Condition NEW
Mods -
Tag Date 10/14/24
Shop Comant Industries Inc.
Warranty 1 Year
CI-292-2
- VHF Comm Antenna

NSN: 5985-01-524-3427

Price Condition Status
$425.00 NEW OUTRIGHT 1 IN STOCK
