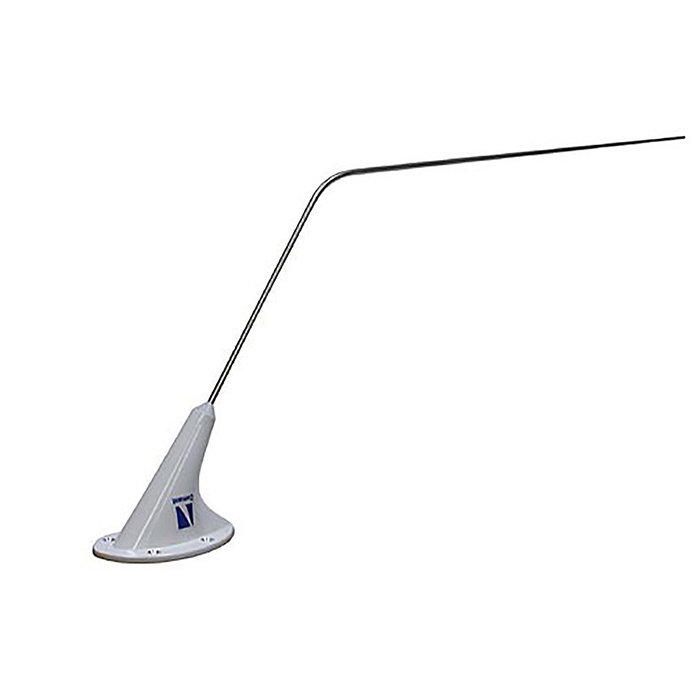

Picture of product CI-292-3

Part #: CI-292-3

NSN:

5985-01-465-2677

OEM:

Comant

Desc:

Bent Whip FM Antenna

Part Number :







CI-292-3

FEATURES

  • Designed to provide 2.5:1 VSWR or better over a bandwidth of 138-174 MHz
  • Features a high-strength die-cast 3-hole aluminum base
  • Radiating element is a bent-whip tapered stainless steel rod suitable for bottom mounting
  • The CI- 292-3 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements
  • Frequency · 138-174 MHz



SPECIFICATIONS

Electrical :

Frequency 138 - 174 MHz
VSWR 2.5:1 Maximum
Polarization Vertical
Radiation Pattern Omnidirectional
Impedance 50 Ohms
Power RF 50 Watts



Mechanical :

Weight 0.5 lb. Maximum
Height 9.50 in. Maximum
Material Die Cast housing / Stainless steel whip
Finish White Polyurethane Enamel
Connector BNC (female)
Gasket B29205



Environmental :

Temperature -55°C to +70°C
Altitude 50,000 ft.
Air Speed 250 Knots @ 25,000 ft.



Federal Specifications :

RTCA Environmental DO-160D
Environmental Category [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX
FAA TSO C37d, C38d
RTCA MOPS DO-186A

Part Number: Description:
CI-292-3 FM / 2 Meter Bent Whip Antenna -- 138 to 174 MHz with 3-hole Mounting



Serial # 751703
Condition NEW
Mods -
Tag Date 03/08/24
Shop Comant Industries Inc.
Warranty 1 Year
CI-292-3
- Bent Whip FM Antenna

NSN: 5985-01-465-2677

Price Condition Status
$695.00 NEW OUTRIGHT 1 IN STOCK
