Part #: CI-305

NSN:

5985-01-653-4314

OEM:

Comant

Desc:

DME/Transponder Antenna

Part Number :

DME Transponder (CI-305 Series)

Frequency · 960-1220 MHz

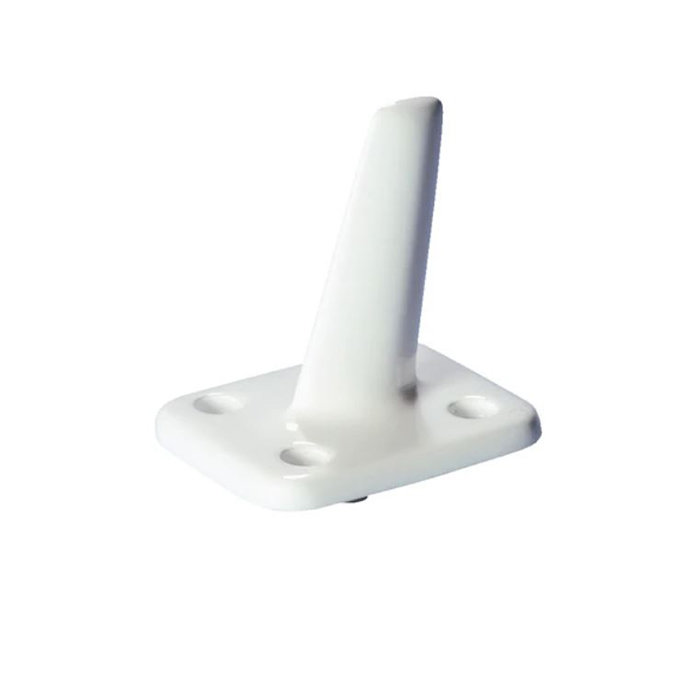

Miniature high speed DME/transponder, one of the smallest DME/transponder antennas available from Comant. Less than 2.75 inches high featuring a very low-drag frontal profile. Strong, lightweight and easy to mount using four external mounting holes in the base.



Electrical :

Frequency 960 - 1220 MHz
VSWR 1.8:1 Maximum
Polarization Vertical
Radiation Pattern Equivalent of l / 4 Stub
Impedance RF 50 Ohms
Resistance DC Open Circuit
Power RF 1 KW Peak

 Mechanical :

Weight 0.3 lb. Maximum
Height 2.75 in. Maximum
Material Molded Radome
Finish White Polyurethane Enamel (Standard)
Connector (see above P/N's to order the choice of connector)
Gasket B30503

 Environmental :

Temperature -55°C to +85°C
Altitude 70,000 ft.
Air Speed 400 Knots TAS at 35,000 ft.

 Federal Specifications :

RTCA Environmental DO-160A
FAA TSO C66b, C74c
Environmental Category AE1/A/JXXXXXXXXXXX
RTCA MOPS DO-144, DO-189



Part NumberDescription:
CI-305 DME Transponder Miniature High Speed Antenna with a BNC Connector
CI-305-2 DME Transponder Miniature High Speed Antenna with a TNC Connector
CI-305-3 DME Transponder Miniature High Speed Antenna with a C Connector



CI-305
- DME/Transponder Antenna

NSN: 5985-01-653-4314

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
