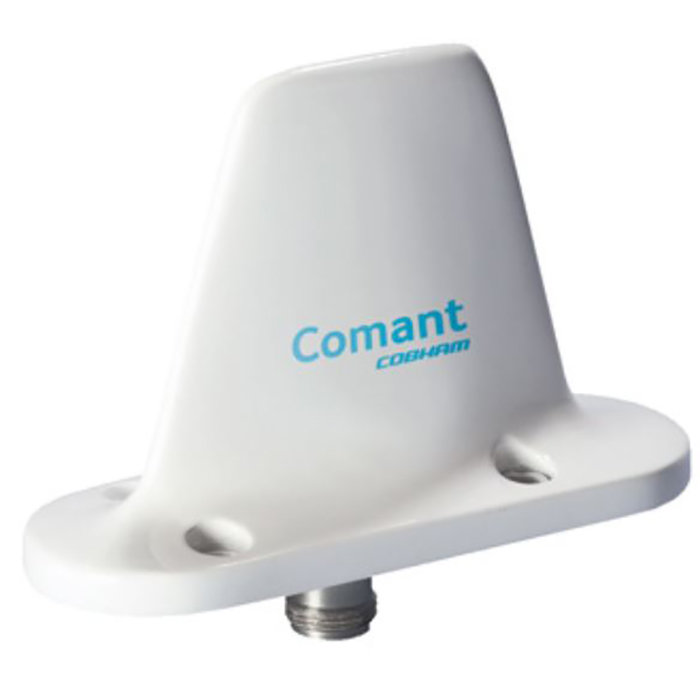

Picture of product CI-310-22-4

Part #: CI-310-22-4

OEM:

Comant

Desc:

L-Band/UHF Blade Antenna

Part Number :







FEATURES

  • L Band / UHF blade antenna designed for high performance aircraft
  • Low profile, light weight antenna
  • Packaged in a molded body with metal mounting base to ensure stable environmental performance and resistance to vibration, rain erosion and cleaning solvents
  • Vertical/omnidirectional pattern
  • Wide band/high efficiency electrical performance
  • DC grounding for lightning protection



SPECIFICATIONS

Frequency: 806-960 MHz & 1030-1090 MHz Weight: 0.32 lbs.
VSWR: 1.75:1 @ 806 to 960 MHz, 1.5:1 @ 1030 to 1090 MHz Impedance: 50 OHMS
Temperature Range: -55°C to +70°C  FAA TSO: C74c, Class 1A
Altitude: 50000 ft. RF Power: 100 Watts Average
Polorization: Vertical Radiation Pattern: Equivalent 1/4 Wave Stub
Height: 3.25 inches Material: High Density Polyurethane
Finish: White Polyurethane Enamel Connector: TNC
Airspeed: 600 Kts TAS @ 25,000 ft. Enviromental RTCA: DO-160D



Part Number:  Description:
CI-310-22-4 L-Band/UHF Blade Antenna



CI-310-22-4
- L-Band/UHF Blade Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
