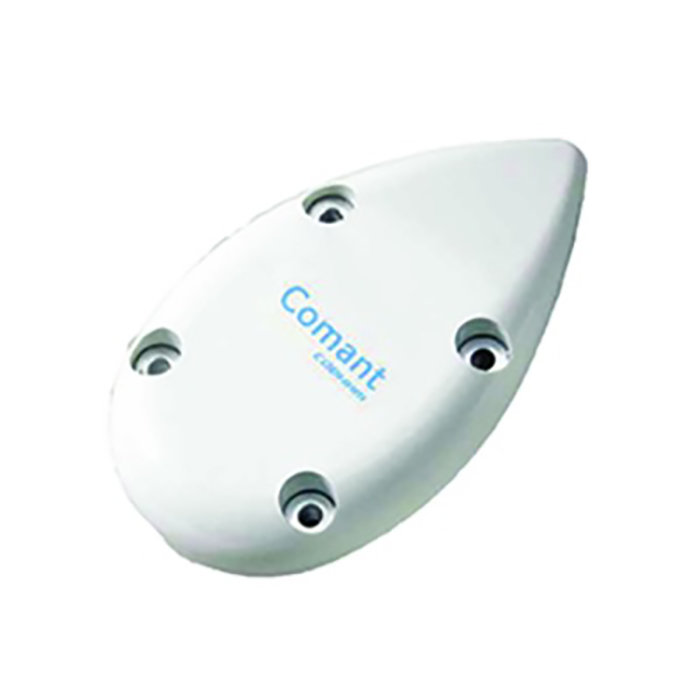

Picture of product CI-420-490

Part #: CI-420-490

OEM:

Comant

Desc:

Iridium Antenna (1616-1626MHz, Teardrop)

Part Number :





FEATURES
  • RTCA Environmental DO-160G
  • TNC ports
  • FAA TSO C159a
  • Designed for airborne Iridium based telephone
  • Suitable for top mounting for both light and heavy fixed wing single engine



SPECIFICATIONS

Iridium TX / RX: 1616.0-1626.5 MHz VSWR: 1.5:1 Max
Polarization: RHCP Radiation Pattern: Hemispherical
Impedance RF: 50 Ohms Power Handling - TX:  6.5 Watts Average
Lightning Protection: DC Grounded Gain:  +3 dBic @ Zenith
Weight:  5.0 Oz Max Finish:  Glossy White
Connector: TNC (Female)
Part Number: Description:
ci-420-490 Iridium Antenna, Teardrop





CI-420-490
- Iridium Antenna (1616-1626MHz, Teardrop)
Price Condition Status
$695.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
