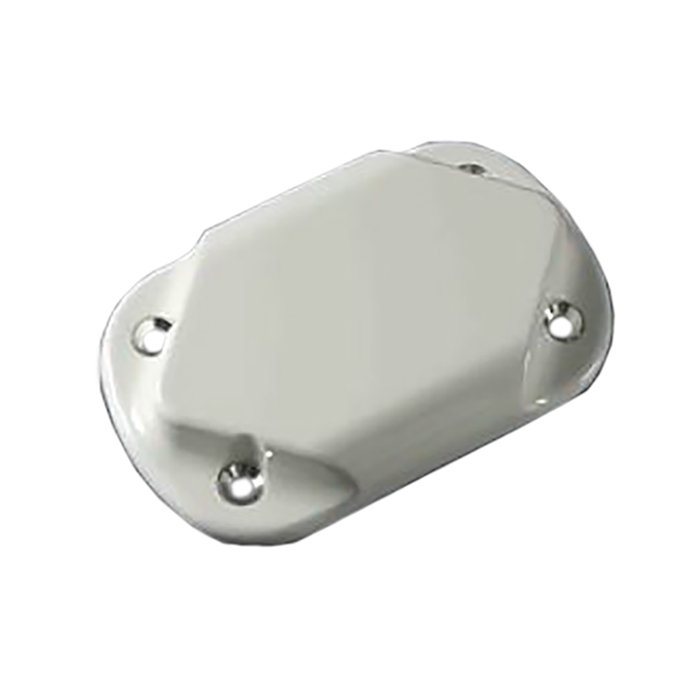

Picture of product CI-429-200

Part #: CI-429-200

OEM:

Comant

Desc:

GPS/WAAS Antenna

Part Number :



CI 429-200
FEATURES
  • WAAS GPS 1575.42 MHz Antenna
  • Qualified under C190 WAAS requirements
  • ARINC 743 footprint
  • Will operate with any DO-301 qualified WAAS GPS system providing full Gamma 2 & 3 and LPV capabilities
  • Environmentally tested under RTCA DO-160E standards
  • Skydrol resistent radome and nickel plated aluminum base plate
  • Includes standard Nitrile 'O' ring for positive sealing to the aircraft skin



SPECIFICATIONS
Frequency: 1575.42 +/- 10.23 MHz VSWR: 1.5:1
Polarization: RHCP Radiation Pattern: Omnidirectional
Impedance: 50 Ohms (Nominal) Gain @ 1575.42 MHz: 26.6 dB MIN - 32.5 dB MAX
DC Voltage: 4 to 24 VDC DC Current Min/Max: 40 mA TYP / 60 mA MAX
Noise Figure: 2.5 dB MAX Stability: Unconditional
Weight: 7.73 oz. MAX Finish: Glossy White
RTCA Env. / TSO: DO-160E / C190 Connector: TNC (Female)
Part Number: Description:
CI-429-200 GPS/WAAS Antenna



Serial # 722500
Condition NEW
Mods -
Tag Date 03/16/23
Shop Comant Industries Inc.
Warranty 1 Year
Serial # 706201
Condition NEW
Mods -
Tag Date 10/17/22
Shop Comant Industries Inc.
Warranty 1 Year
CI-429-200
- GPS/WAAS Antenna
Price Condition Status
$825.00 NEW OUTRIGHT 2 IN STOCK
