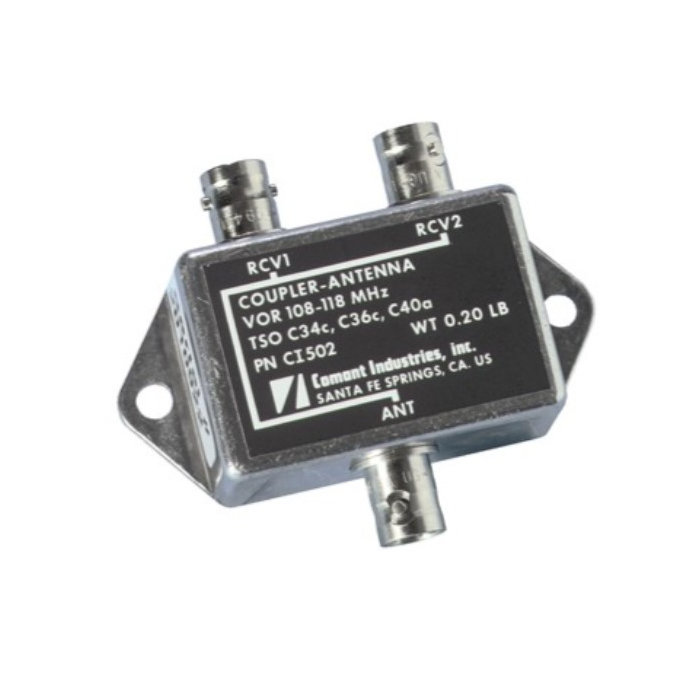

Picture of product CI-502
Part #: CI-502
Model: CI-502
Desc: Dual VOR Splitter
OEM: Comant
NSN: 5985-01-498-0502
Sched-B: 8529904740
ECCN: 7A994
Cage Code: 51351
Part Number :





FEATURES

  • VOR Coupler (CI-502)
  • Frequency · 108-118 MHz
  • Dual VOR coupler allows the simultaneous use of two VOR receivers from one VOR antenna
  • Compact design makes installation easy



SPECIFICATIONS

Electrical :

Frequency 108 - 118 MHz
VSWR 1.5:1 Maximum
Insertion Loss 0.5 dB Maximum
Isolation 20 dB Minimum
Impedance RF 50 Ohms

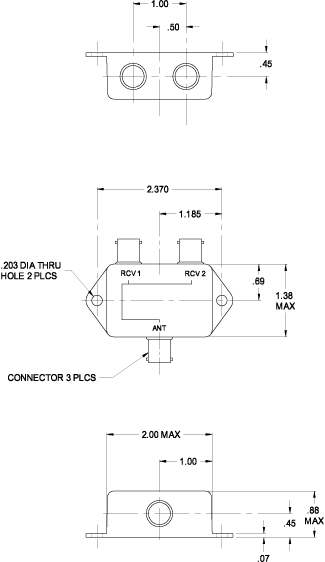

 Mechanical :

Weight 0.20 lb. Maximum
Height 0.88 in. Maximum
Material Die Cast Aluminium
Finish Aluminium
Connector (see above P/N's to order the choice of connector)

 Environmental :

Mount Internal

 Federal Specifications :

FAA TSO C36c, C40c



Part Number: Description:
CI-502 Dual VOR Splitter with a BNC Connector
CI-502-2 Dual VOR Splitter with a TNC Connector



Serial # 769778
Condition NEW
Mods None
Tag Date 10/10/24
Shop Comant Industries Inc.
Warranty 1 Year
Serial # 769741
Condition NEW
Mods None
Tag Date 09/05/24
Shop Comant Industries Inc.
Warranty 1 Year
CI-502
- Dual VOR Splitter

NSN: 5985-01-498-0502

Price Condition Status
$295.00 NEW OUTRIGHT 2 IN STOCK
