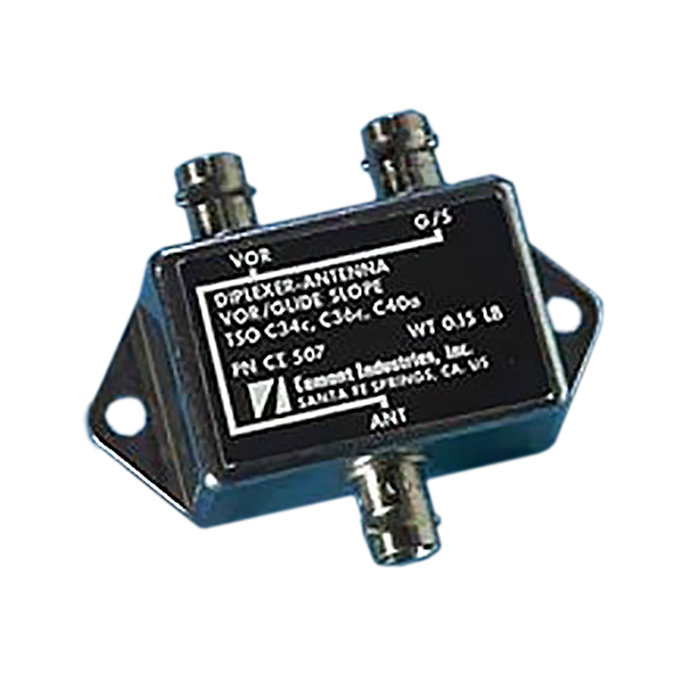

VOR/GS Diplexer (CI-507)
Frequency · 108-118 MHz & 329-335 MHz
Single VOR/single glide slope diplexer allows the operation of one VOR and one glide slope receiver from one VOR/glide slope antenna. Compact design makes installation easy.
Electrical :
Frequency | 108 - 118 and 329 - 335 MHz |
VSWR | 1.5:1 Maximum |
Insertion Loss | 0.5 dB Maximum |
Isolation | 20 dB Minimum |
Impedance RF | 50 Ohms |
Mechanical :
Weight | 0.20 lb. Maximum |
Height | 0.88 in. Maximum |
Material | Die Cast Aluminium |
Finish | Aluminium |
Connector | BNC (female) |
Environmental :
MOUNT | Internal |
Federal Specifications :
FAA TSO | C34c, C36c, C40a |
Part Number | Description: |
---|---|
CI-507 | Diplexer VOR/Glide Slope with a BNC Connector |
Serial # | 751230 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 01/26/24 |
Shop | Comant Industries Inc. |
Warranty | 1 Year |
Serial # | 751231 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | 01/26/24 |
Shop | Comant Industries Inc. |
Warranty | 1 Year |
Serial # | 751233 |
---|---|
Condition | NEW |
Mods | - |
Tag Date | - |
Shop | - |
Warranty | 1 Year |
NSN: 5985-01-569-0637
Price | Condition | Status |
---|---|---|
$255.00 | NEW OUTRIGHT | 3 IN STOCK |
