Picture of product CI-509

Part #: CI-509

NSN:

5985-01-425-1744

OEM:

Comant

Desc:

Dual Marker Beacon Diplexer

Part Number :





Marker Beacon Coupler (CI-509)

Frequency · 75 MHz

Dual marker beacon coupler permits the use of two marker beacon receivers from one marker beacon antenna. Compact design makes installation easy.

Electrical :

Frequency 75 MHz
VSWR 1.5:1 Maximum
Insertion Loss 0.5 dB Maximum
Isolation 20 dB Minimum
Impedance RF 50 Ohms

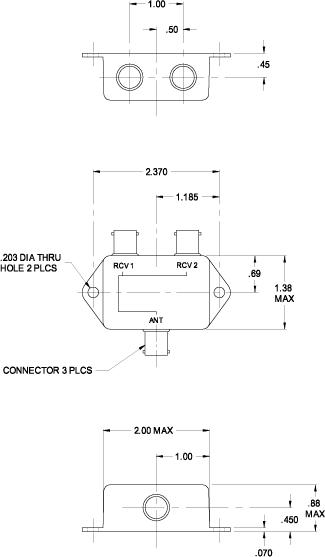

Mechanical :

Weight 0.20 lb. Maximum
Height 0.88 in. Maximum
Material Die Cast Aluminium
Finish Aluminium
Connector BNC (Female)

Environmental :

  Internal Mount

Federal Specifications :

FAA TSO C35d



Part NumberDescription:
CI-509 Dual Marker Beacon Coupler



CI-509
- Dual Marker Beacon Diplexer

NSN: 5985-01-425-1744

Price Condition Status
$250.00 NEW OUTRIGHT REQUEST LEAD TIME
