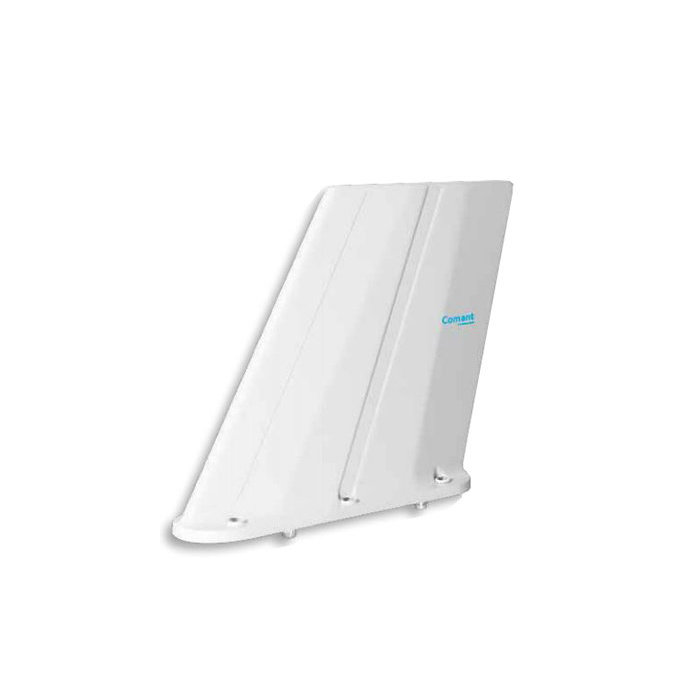

Picture of product CI319-1

Part #: 110-340

Model: CI319-1

OEM:

Comant

Desc:

ELT Antenna (High Speed Blade)

Part Number :


CI-319-1



FEATURES

  • SIngle connector tri-band blade
  • ELT frequenciesare covered with oneBNC connector
  • One RF cable needs to be run through the fuselage



SPECIFICATIONS

frequency: 121.5, 243 and 406 MHz polarization: Vertical
vswr 121.5 & 243 mhz: 2.0:1 Maximum VSWR 406 MHz : 1.5:1 Maximum
Radiation Pattern: Omnidirectional Impedance RF: 50 Ohms
Power RF: 50 Watts Maximum Weight: 1.4 Lbs Maximum
Height: 7.85 Inches Maximum Finish: Polyurethane Enamel
Connectors CI 319: 121.5, 243 MHz MHz BNC, 406 HMz TNC Connector CI 319-1: BNC All Frequencies
Environmental: Consult with ACR FAA TSO Consult with ACR
Part Number: Description:
ci-319-1 ELT Antenna (High speed Blade)





110-340
- ELT Antenna, Tri-band, Blade SI
Price Condition Status
$1,895.00 NEW OUTRIGHT REQUEST LEAD TIME
