Picture of product RG132

Part #: RG132

OEM:

Concorde Battery

Desc:

Aircraft Battery

Part Number :

Concorde Aircraft Battery

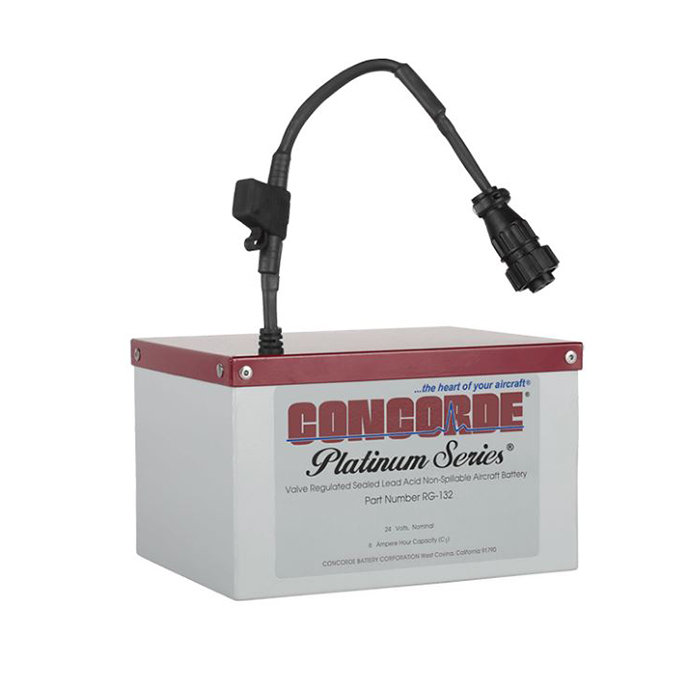

RG132 Aircraft Battery

DESCRIPTION

  • Avionics Battery for lighting, standby, emergency power
  • Protects and extends the life of other avionics
  • Concorde`s Emergency Batteries float directly on the DC buss with no need for a dedicated charger
  • High inrush current which extends battery life with fast recovery time from discharge
  • With the battery floating directly on the buss, transient spikes in the DC power are absorbed
  • These batteries are self regulating on charge and will take only the current required to maintain it at full charge
  • The RG Series are low resistance, valve regulated lead acid (VRLA) batteriesMaintenance free
  • Constructed with non removable vent valves no addition of electrolyte or water required
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • Manufactured with absorbed glass mat separators (AGM)
  • RG Series batteries ship Hazmat Exempt
  • Glass Panel Application
  • 25 Amp Fuse
  • C1 @ 23°C (74°F) = 6.0 Ah
  • C1 @ -18°C (0°F) = 4.0 Ah
  • C1 @ -30°C (-22°F) = 3.0 Ah





SPECIFICATIONS

voltage: 24V MAX weight: 14.5 lbs. / 6.6 kgs
Ralated capacity c1 = 1 hour: (Rate in ampere hours) 6 primary aircraft purpose: Emergency Aircraft Battery





                                                  RG-132 Concorde Aircraft Battery Drawing















RG132
- Aircraft Battery
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
