Part #: D51615-3411
Model: EMPFR
NSN: |
|
OEM: |
Curtiss Wright |
Part Number :
Select part number above to view pricing and availability.
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | NEW OUTRIGHT | RFQ |
|
* Price & Availability valid as of 02/24/21 17:41:08 EST *

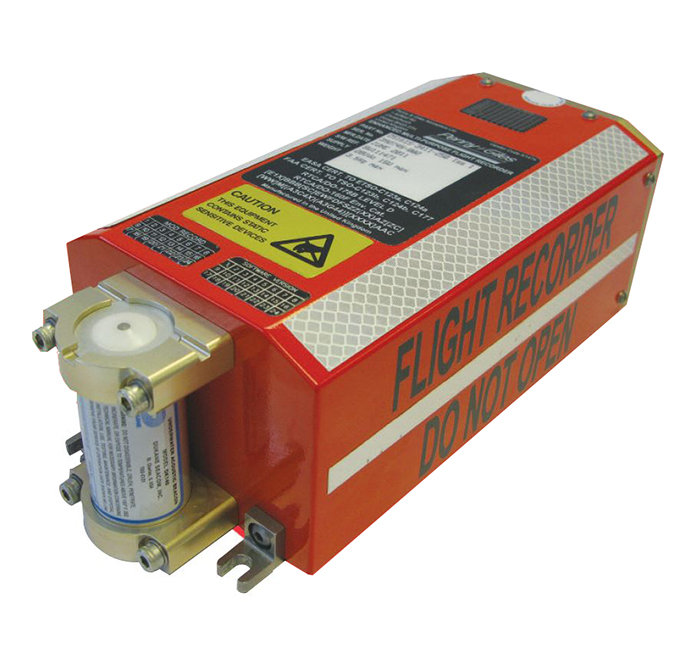

EMPFR
FEATURES
- Remote diagnostics capability
- Installation in any attitude
- Compact size, low weight
- Fast data recovery (FDR data < 1.5min, CVR data
- < 2min) using Ethernet interface direct to network or PC
- Meets and exceeds EUROCAE ED112
- EASA and FAA approved to TSO-C123b and TSOC124b
SPECIFICATION
| Power: | 28Vdc, 12W max | Locator beacon: | Fitted with miniature ultrasonic locator beacon, to TSO-C121 |
| Cooling: | Free air convection, no forced cooling | Connector: | MIL-C-38999 Series III |
| Environmental: | RTCA/DO-160F | Operating temperature: | -55°C to +71°C |
| Storage temperature: | -55°C to +85°C | Altitude: | -1500ft to +55,000ft |
| CVR DURATION: | 4 channels x 120 minutes | AUDIO BANDWIDTH: | 150Hz to 3.5kHz (3 voice channels),150Hz to 6.0kHz (single area-microphone channel) |
| PLAYBACK: | Off-aircraft high-speed download of complete CVR record using,Ethernet interface to portable PC or recovery device | DATA LINK: | TSO-C177 |
| FAULT REPORTING: | Via discrete output or via web, status pages., Internal CVR/FDR synchronization,18V output power for CCU | FDR DURATION: | 25 hours (at 512 words/sec) |
| fdau interface: | Harvard bi-phase in accordance with ARINC 573/717 | data rates: | 64, 128, 192, 256, 384, 512 and 1024wps |
| relay: | Real-time output of recorded data using ARINC 573/717 interface, On-or off-aircraft high speed downloads of complete FDR record using Ethernet interface into | mass: | <7.7lb (3.5kg) including Underwater Locator Beacon (ULB) |
| software level: | RTCA/DO-178B Level D | hardware level: | RTCA/DO-254 Level D |
| mtbf: | 20000 hours - fixed wing, 8000 hours - rotary wing | deep water immersion: | 60MPa (20,000ft |
| impact: | 3,400g for 6.5msec | crash protection: | Exceeds ED-112,TSO-C123b,TSO C124b |
| high temp fire: | 1,100°C for 60 minutes | low temp fire: | 260°C for 10 hours |
| static crush: | 2,270kg for 5 minutes | penetration: | 227kg from 3m |
| dimension: | H 3.5” (89mm) x L 10.9” (277mm) x W 4.6” (118mm) including ULB |
D51615-3411
- Enhanced Multi Purpose Flight Recorder
| Price | Condition | Status |
|---|---|---|
| RFQ | NEW OUTRIGHT | RFQ |
