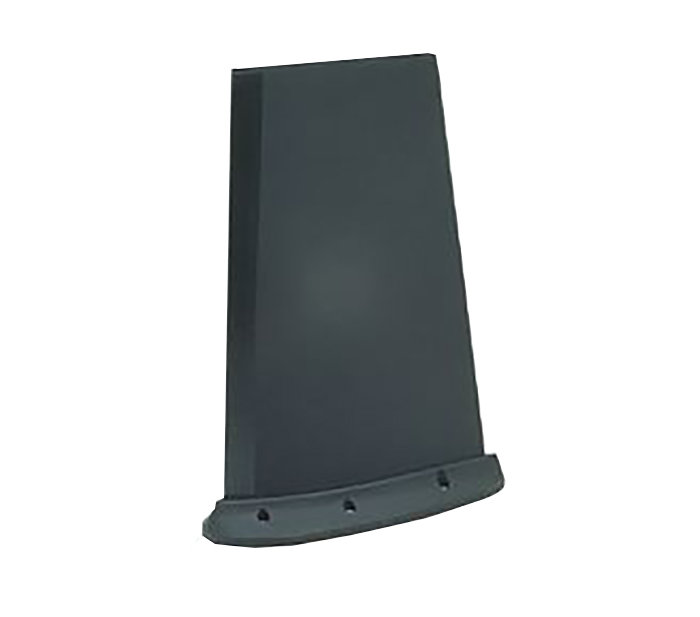

Picture of product FM10-312-2
Part #: FM10-312-2
Model: FM10-312-2
Desc: VHF/UHF Comm Antenna (Black)
OEM: Dayton-Granger
NSN: 5985-01-106-2422
Sched-B: 8529104000
ECCN: 9A610.x
Cage Code: 55635
Part Number :




FM10-312-2
FEATURES
  • The FM10-312-2 is a military-qualified combination VHF/UHF communications antenna which operates over the frequency ranges of 30 to 88 MHz, 108 to 174 MHz, and 225 to 400 MHz
  • It is designed to withstand the severe conditions on high-performance aircraft
  • The antenna consists of an aerodynamic blade rigidly locked into a cast aluminum base
  • All internal components are encapsulated into the sealed base cavity to prevent moisture intrusion
  • The antenna meets all applicable requirements of MIL-STD810C



SPECIFICATIONS

Frequency:  30-400 MHz  VSWR: 2.5:1@ 30-88MHz, 2.0:1@ 108-174 & 225-400MHz
Impedance: 50 Ohms  Polarization: Vertical
Power: 40w @ 30-174, 100w @ 225-400  Radiation Pattern:    Omnidirectional
Connector: TNC Weight: 4.0 lbs. (1.81 kgs.)
Finish: Lusterless Black Height: 14.5 Inches (368mm)
Construction: Fiberglass environmental: Side Load, 12+psi
speed rating: 600 Knots APPROVALS: MIL-STD 810C, AS-3191



Part Number: Description:
  FM10-312-2 VHF/UHF Comm Antenna (Black)







Serial # 4776
Condition NEW
Mods -
Tag Date 01/27/25
Shop Dayton-Granger Inc.
Warranty 1 Year
Serial # 4054
Condition SV
Mods -
Tag Date 10/10/24
Shop Dayton-Granger Inc.
Warranty 6 Months
Serial # 4073
Condition SV
Mods -
Tag Date 10/10/24
Shop Dayton-Granger Inc.
Warranty 6 Months
FM10-312-2
- VHF/UHF Comm Antenna (Black)

NSN: 5985-01-106-2422

Price Condition Status
$4,150.00 NEW OUTRIGHT 1 IN STOCK
$3,450.00 SV OUTRIGHT 2 IN STOCK
