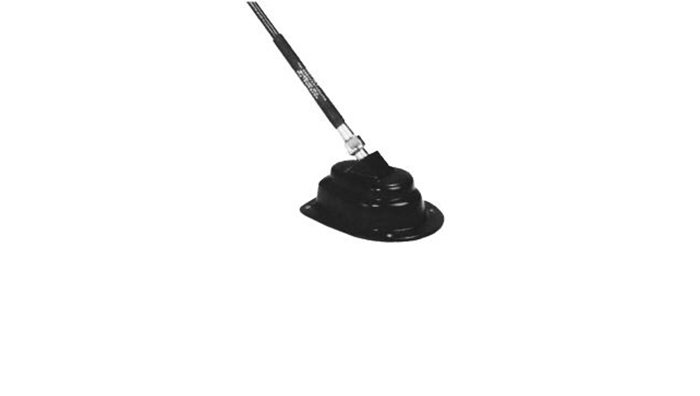

Picture of product FM10-322-4
Part #: FM10-322-4
Model: FM10-322-4
Desc: VHF Comm Antenna
OEM: Dayton-Granger
NSN: 1560-01-559-6234
Sched-B: 8529104000
ECCN: 7A994
Cage Code: 55635
Part Number :


FM10-322-4



FEATURES

  • This antenna consists of a coupler and fiberglass whip
  • Created to be mounted on fixed wing aircraft or on the tail boom of a helicopter
  • It can also be mounted on ground vehicles
  • Designed to reduce wind loading in aircraft applications
  • Constructed of fiberglass and epoxy materials
  • All components are foamed in place to prevent problems incurred with shock and vibration



SPECIFICATIONS

Frequency:  30-88 MHz VSWR: 2.5:1
Impedance: 50 Ohms  Polarization: Vertical
Power: 100 Watts Radiation Pattern:    Omni Directional
Connector: BNC Weight: 1.3 Lbs (0.59kg)
Finish: Olive Drab Height: 40.6 inches (1.01 mm)
Construction: Fiberglass Whip Speed Rating: 250 Knots




Part Number: Description:
FM10322-4 VHF Communications Antenna





FM10-322-4
- VHF Comm Antenna

NSN: 1560-01-559-6234

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
