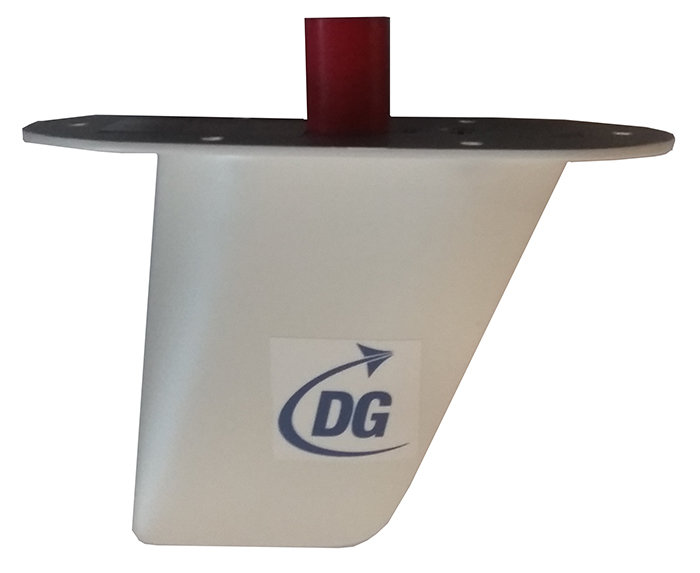

Picture of product L10-16
Part #: L10-16
Model: L10-16
Desc: DME / Transponder Antenna
OEM: Dayton-Granger
NSN: 6240-00-005-4869
Sched-B: 8529104040
ECCN: 7A994
Cage Code: 55635
Part Number :


L10-16

FEATURES
  • L10-16 antenna is vertically polarized and designed to operate over the frequency range of 925 to 1215 MHz
  • Constructed of fiberglass and epoxy materials
  • The internal structure is foamed in place to avoid the problems during aircraft shock and vibration



SPECIFICATIONS
Frequency:  925-1215 MHz VSWR: 1.5:1
Impedance: 50 Ohms  Polarization: Vertical
Power: 100 Watts Radiation Pattern:    Omnidirectional
Connector: N Weight: 0.5 Lbs (0.22 kg)
Finish: Gloss white Height: 4.0 In (102 mm)
Construction: Fiberglass Speed Rating: 600 Knots
temperature: -62˚C to +71˚C shock: 6g
vibration: 5g approvals: FAA TSO C66a CAA





Part Number:  Description:
l10-16 DME/ Transponder L Band Antenna



Serial # 1960
Condition SV
Mods None
Tag Date 03/18/25
Shop Avionics Specialist Inc.
Warranty 6 Months
Serial # 3979
Condition OH
Mods None
Tag Date 01/28/25
Shop Avionics Specialist Inc.
Warranty 6 Months
L10-16
- DME / Transponder Antenna

NSN: 6240-00-005-4869

Price Condition Status
$1,050.00 SV OUTRIGHT 2 IN STOCK
$1,395.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
