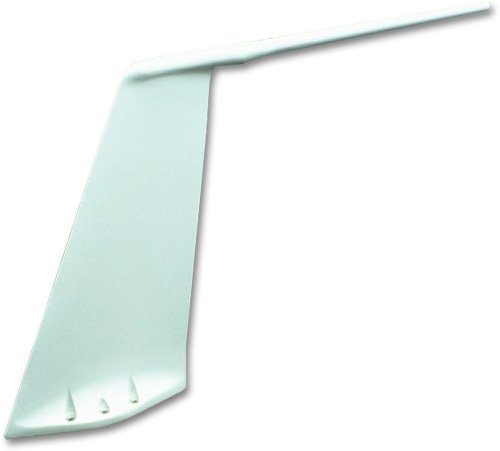

Picture of product VF10-347
Part #: VF10-347
Model: VF10-347
Desc: VHF Comm Antenna
OEM: Dayton-Granger
Sched-B: 8529104040
ECCN: 7A994
Part Number :


VF10-347
FEATURES
  • VHF Communications Antenna
  • Series SPI antennas
  • Low profile
  • Vertically polarized
  • 116 to 150 MHz Frequency Range
  • Constructed of cast aluminum
  • Higher MTBF than fiberglass antennas



SPECIFICATIONS
Frequency:  116 - 150 MHz  VSWR: 2.5:1 @ 116-150
Impedance: 50 Ohms  Polarization: Vertical
Power: 40 Watts Radiation Pattern:    Omnidirectional
Connector: See P/N Chart Weight: 1.5 Lbs
Finish: White Polyurethane Height: 8.3"
Construction: Aluminum/Fiberglass Side Load: 100 psi
Vibration: 3G Shock: N/A
Temperature:   -62°C to +71°C Speed Rating: 600 Knots
Approvals: FAA TSO C37b, C38b
Part Number VHF Comm Antenna Description:
VF10-347-1 BNC connector, Direct replacement for Chelton 16-21B
VF10-347-2 TNC connector, Direct replacement for Chelton 16-21B
VF10-347-3 BNC connector, Direct replacement for HR Smith 10-118-2

VF10347
VF10-347
- VHF Comm Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
