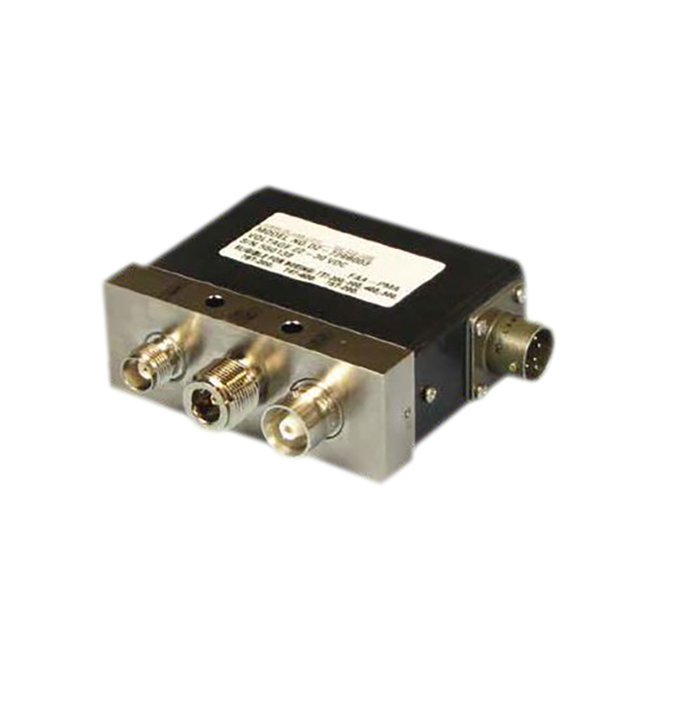

Picture of product D2-723Q001

Part #: D2-723Q001

OEM:

Ducommun

Desc:

Coaxial Switch (TCAS)

Part Number :

Ducommun Incorporated | NrgEdge



FEATURES

  • Designed for high frequency RF signal between the top and bottom fuselage mounted antenna and numbers 1 and 2 transponders
  • Traffic Collision Alerting System (TCAS) Switch
  • FMA PMA certified switches for TCAS and ADS-B application
  • Air agency certificate no. : D5YR708X
  • Additional microwave switch applications- SATCOM and GPS applications



SPECIFICATIONS

OPERATING FREQUENCY (ghZ): DC-1 V.S.W.R : 1.25:1
INSERTION LOSS (max): 0.25 dB  ISOLATION (min): 90 dB
actuating voltage (VDC):: (28 VDC Nominal) 24-30 actuating current: (400 mA @) 28 VDC & 72° C
IMPEDANCE: 50 Ohms Switching time: (mS Max) 35
rf power handling: (WCW) 200 (10 W Terminated) OPERATING: Failsafe w/ indicator suppression diodes
operating temperature: -15°C to +55°C OPERATING LIFE: 1,000,000 (Cycles)
current of ground port B & c: (mA mAX) 5 WEIGHT: 7.5 oz
Part Number: Description:
d2-723Q001 Coaxial Switch (TCAS)




D2-723Q001
- Coaxial Switch (TCAS)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
