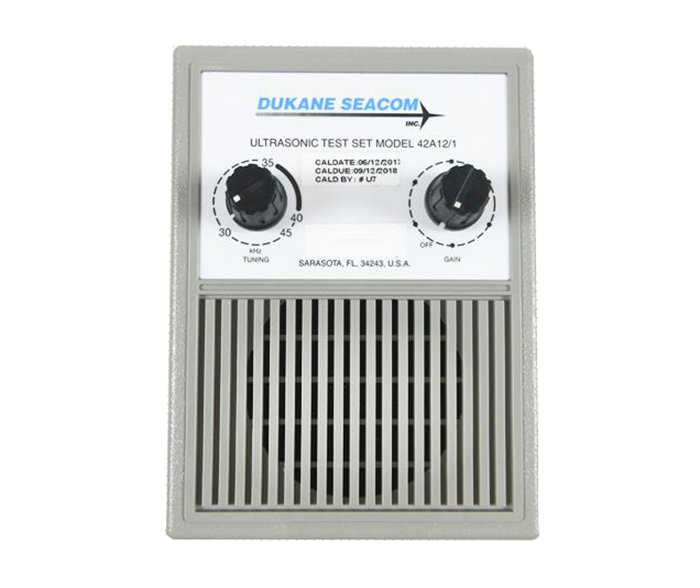

Picture of product 42A12/1

Part #: 42A12/1

NSN:

6625-01-581-8333

OEM:

Dukane Seacom

Desc:

ULB Test Set

Part Number :
Dukane Logo

42A12/1
FEATURES
  • The Dukane 42A12 / 1 is a self-contained, hand-held functional tester designed primarily for testing underwater acoustic beacons
  • It is a battery operated heterodyne type receiver tunable over the ultrasonic frequency range of 30 to 45 kHz
  • Utilizing the internal microphone and loudspeaker, the test set can perform an operational test on a beacon without removing the beacon from its mount on the aircraft
  • Single hand operation
  • Audible
  • Can be used while beacon is still mounted to the airframe or to the aircraft's flight recorder
  • Performs required operational tests for DK100, DK120, DK130 and DK140 beacons as well as other beacons in the 30-45 kHz range
  •

SPECIFICATIONS
SIZE: 5.3 in. high, 4 in. wide, 2 in. deep /  4-1/2" high x 3" wide x 2-1/4" deep CONFIRMATION OF PROCEDURE: Audible
WEIGHT:  13 ounces / 9.4 ounces CALIBRATION: Manufacturer Calibrated
BATTERY:  9 volt (One) COMPATIBLE BEACON: 30 to 40 kHz
Part Number ULTRASONIC TEST SET Description:
42A12/1 Dukane Seacom ULB Test Set







42A12/1
- ULB Test Set

NSN: 6625-01-581-8333

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
