Part #: 505-0031-926

Model: 205-6BL

Extant Aerospace - Directional Gyro

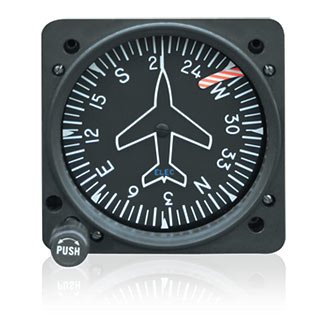

product image
Part Number :

AIM 205

  • Directional Gyro
  • Azimuth motions of the aircraft indicated on the circular vertical dial, graduated in 5° increments
  • 3" bezel mounted from the front or rear in shock-mounted panels
  • Input power options: 14VDC or 28VDC
  • Includes failure warning flag that displays if primary power drops below a preset value
  • Integral lighting optional
  • Optional bootstrap output also available
  • TSO C5c and TSO C5e
Dimensions: 7.60"L x 3.38"H x 3.38"W (Side Rear Mount, unlit 205-1A, -1D, -1B) 8.02"L x 3.38"H x 3.38"W (Side Rear Mount, lit 205-1AL, -1BL, -1BLF, -1BLD, -1BLR) 8.02"L x 3.50"H x 3.50"W (Side Bezel Mount, unlit 205-1BF) Weight: 3.2 lbs. maximum
Part NumberDirectional Gyro Description:
505-0031-9XX Part Number Chart


- Directional Gyro
Price Condition Status
