Part #: FD102ARM-R-L-T
Model: FD102ARM-R-L-T
NSN: |
|
OEM: |
FDS |
Desc: |

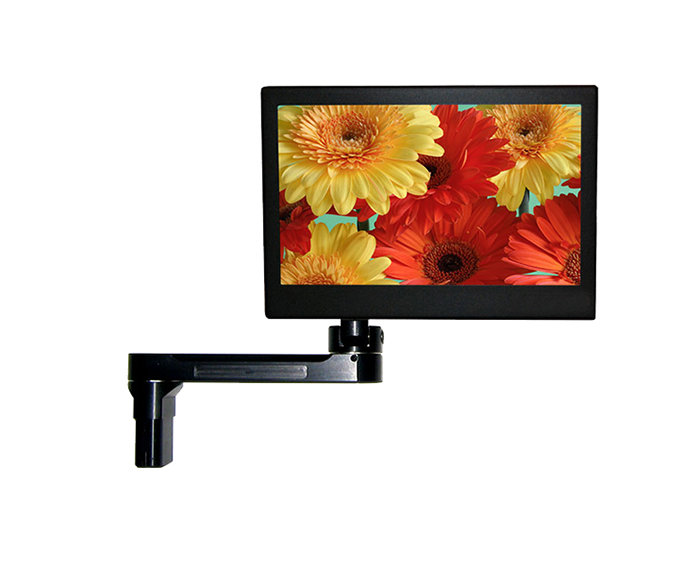

10.2" Widescreen LCD & Right Long Tall Arm |
Part Number :
Select part number above to view pricing and availability.
| Price | Condition | Status | Part Info | |
|---|---|---|---|---|
| RFQ | NEW OUTRIGHT | RFQ |
|
* Price & Availability valid as of 03/07/21 12:31:24 EST *
FD102ARM-R-L-T
FEATURES
- This high resolution 10.2” Widescreen Aircraft LCD is perfect for cabin video and graphical entertainment
- The FD102ARM 10.2-inch Aircraft LCD ideal for any drink rail or side wall, this monitor can be mounted virtually anywhere and stowed out of sight
- Built with retrofit aircraft integration in mind, this display can switch between three video input sources using an infrared remote or the control buttons on the top of the monitor
- The articulating arm rotates 180 degrees, tilts forward and aft, and the monitor can turn 180 degrees on the end of the mount
- The FD102ARM can also be connected to existing video switchers and can take a composite video input from a selector interface box
- Multiple input sources can be selected and displayed on the monitor
- The FD102ARM cabinet is made of all metal components.
- The LCD is protected with a .060” Lexan lens.
- The purpose of this lens is to prevent scratching of the LCD
- Options available for any combination of standard, long, or tall extensions which add 3” to the arm in either direction (long and tall versions do not have FAA/PMA)
- 7″ and 10.2″ monitors on arm mounts are interchangeable
- Arm attachment to the monitor is offset for increased flexibility
- Rotates full 180° left and right, also adjustable tilt forward and aft
- Monitors can be removed when not in use and for taxi, takeoff, and landing
- LCD and arm mount included
- Base receptacles sold separately
SPECIFICATIONS
| Weight: | 2 Ibs. 15oz | diSPLAY DIMENSION: | 9.80”(W) x 6.3”(H) x 1.1”(D) |
| MOUNT DIMENSIONS: | 7”(W) x 1.8”(H) x 1.5”(D) | POWER: | 12VDC @ 2 Amps 28VDC @ .5 Amps |
| display size: | 8.7” (W) x 5.2” (H) | sCREEN resolutions: | 800×480/640×480~1024×768 |
| video INPUT: | S-Video, Composite | brightness: | 500 cd/m² |
| material: | Aluminum | operating temperature (includes fd102arm vER VC5): | 0-50° C (32-122° F) |
| PC & VIDEO INPUT: | SVGA (Analog RGB 15 pin D-sub) 2 Composite | INTERFACE POWER: | 28V@0.3A |
| PC INPUT: | VGA (analog RGB) | INTERFACE VIDEO INPUT: | 2 Composite Video |
| SCREEN CONTROL: | On-screen Display Menu | REMOTE CONTROL: | IR, Included |
| VIDEO TYPE: | NTSC/PAL |
FD102ARM-R-L-T
- 10.2" Widescreen LCD & Right Long Tall Arm
| Price | Condition | Status |
|---|---|---|
| RFQ | NEW OUTRIGHT | RFQ |
