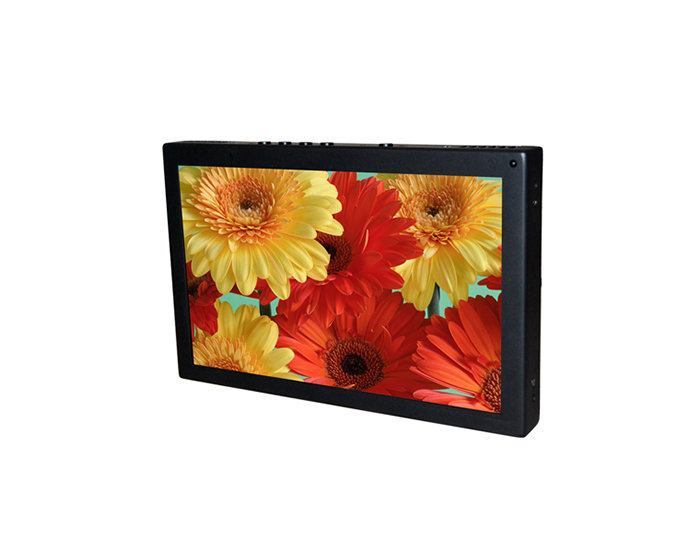

Picture of product FD102CV

Part #: FD102CV

NSN:

5836-01-648-1973

OEM:

FDS

Desc:

LCD, 10" Wide

Part Number :
FD102CV
FEATURES
  • Built with retrofit aircraft integration in mind, this display can switch between three video input sources using an infrared remote or the control buttons on the top of the monitor
  • The FD102CV, 10.2″ Widescreen LCD can be connected to existing video switchers and can take a composite video input from a selector interface box
  • Multiple input sources can be selected and displayed on the monitor
  • The FD102CV is made of all metal components
  • DO-160 testing has been completed and is available upon request
  • The LCD is protected with a .060” Lexan lens. The purpose of this lens is to prevent scratching of the LCD
  • This widescreen monitor is ideal for watching movies in their true format
  • Built for retrofit installation with a compact metal enclosure or increased flexibility
  • No expensive switching required, three inputs included
  • VGA for the Flight Display Moving Map and computer graphics
  • 2 composite inputs for DVD, Glareshield camera, and more
  • Controls on unit or use the included IR remote to switch video source to adjust preferences, etc.
  • Extremely wide viewing angle allows multiple passengers to watch same the monitor
  • Anti glare, scratch resistant Lexan enhances viewing experience and protects the LCD
  • Crystal clear LCD with industry leading brightness
  • 1024 x 600 Resolution
  • Widescreen
  • VGA Input
SPECIFICATIONS
Weight: 2 lbs. 3 oz display Dimensions: 9.8”(W) x 6.32” (H) x 1.04” (D)
display size: 8.70"(W)x5.215"(H) OPERATING TEMPERATURE: -20° C /60° C
MATERIAL:: Aluminum VIDEO TYPE: NTSC/PAL
BRIGHTNESS: 300 cd/m² supported RESOLUTION: Up to 1600x1200
power: 28V@0.3A screen resolution: 1024x600
pc input VGA (Analog RGB 15 pin D-sub)  remote control: IR, included
 video input:  2 Composite Video







FD102CV
- 10.2" Widescreen LCD

NSN: 5836-01-648-1973

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
