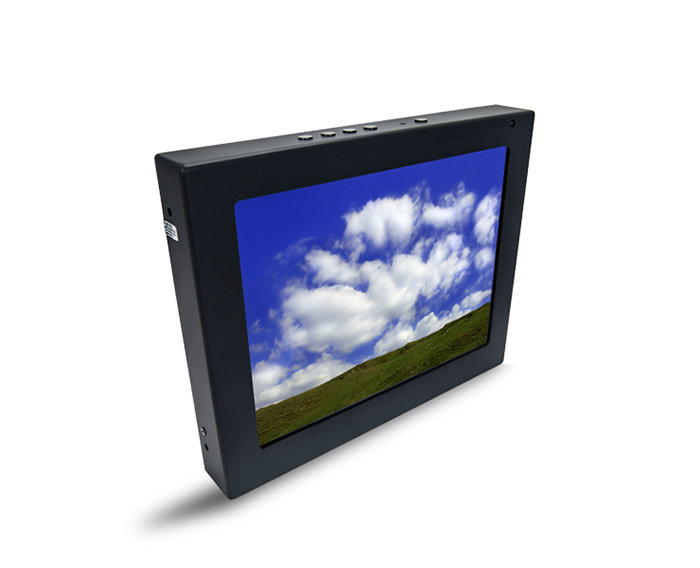

Picture of product FD104CV

Part #: FD104CV

NSN:

5836-01-648-1962

OEM:

FDS

Desc:

LCD Monitor, 10.4"

Part Number :
FD104CV
FEATURES
  • The FD104CV is a 10.4” LCD. Built with retrofit aircraft integration in mind, this display can switch between three video input sources using buttons on the bezel or the infrared Remote
  • The FD104CV, 10.4″Aircraft LCD Display is made of all metal components.
  • The LCD is protected with a .060” Lexan lens that prevents scratching and reduces glare
  • The 10.4” LCD utilizes a state of the art digital video decoding chipset for the analog video input
  • The three video sources in order of picture quality are VGA (Computer Video, such as a Moving Map), S-Video (High-quality DVD), and Composite Video (DVD, Camera, or VCR). Both NTSC and PAL formats are auto-detecte
  • The FD104CV can also be connected to existing video switchers and can take a composite video input from a selector interface box. In this case, multiple input sources can be selected and displayed on the monitor
SPECIFICATIONS
Weight: 3 lbs. 8 oz
display size: 8.24”(W) x 6.2” (H)
brightness: 700 cd/m²
power: 28V DC @ 1.0A
screen resolution: 1024×768 (1280×768 supported)
video inputs supported S-Video, Comosite Video





FD104CV
- 10.4" LCD Display

NSN: 5836-01-648-1962

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
