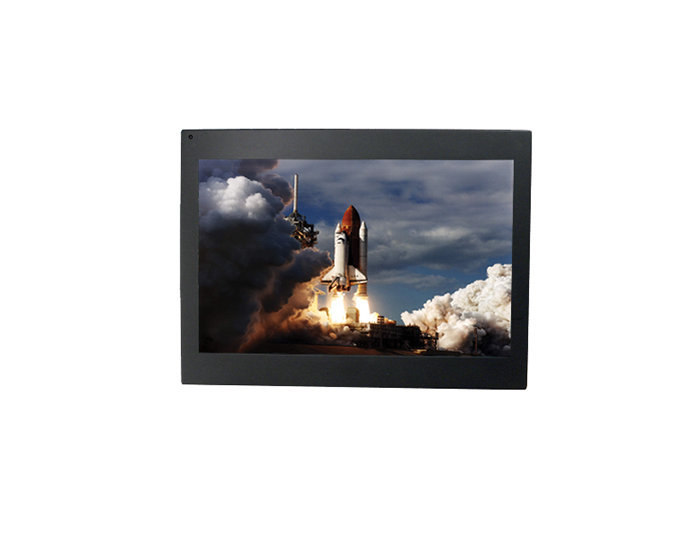

Picture of product FD141CV

Part #: FD141CV

OEM:

FDS

Desc:

14" HD Widescreen LCD

Part Number :



FD141CV
FEATURES
  • The FD141CV is a 14.1” LCD which has features that allow installation in the smallest of mounting areas with the minimum of interface equipment
  • Built with retrofit aircraft integration in mind, this display can switch between three video input sources using an infrared remote
  • The FD141CV, 14″ Widescreen LCD Display utilizes a state of the art digital video decoding chipset for the analog video input
  •  The three video sources in order of picture quality are VGA (computer graphics like moving maps), S-Video and Composite Video (DVD, camera or VCR). Both NTSC and PAL formats are auto-detected
  • The FD141CV can also be connected to existing video switchers and just take a composite video input from a selector interface box. In this case multiple input sources can be selected and displayed on the monitor
  • You would only use the IR remote to set up the screen during installation
  • The FD141CV is made of all metal components. DO-160 testing has been completed and is available upon request
  • The LCD is protected with a .060” Lexan lens. The purpose of this lens is to prevent scratching of the LCD

SPECIFICATIONS
Weight: 6 lbs.  Dimensions: 13.40”(W) x 9.93”(H)x1.50”(D
POWER: 28VDC@ 1.0 Amps OPERATING TEMPERATURE:  30°C to +80° C
PC &  VIDEO INPUT: VGA, Composite, S-Video display size: 11.94”(W) x 7.46”(H)
materials: Aluminum sCREEN resolutions: 1280x800 pixels
display brightness: 1000 cd/m²







FD141CV
- 14" Widescreen LCD
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
