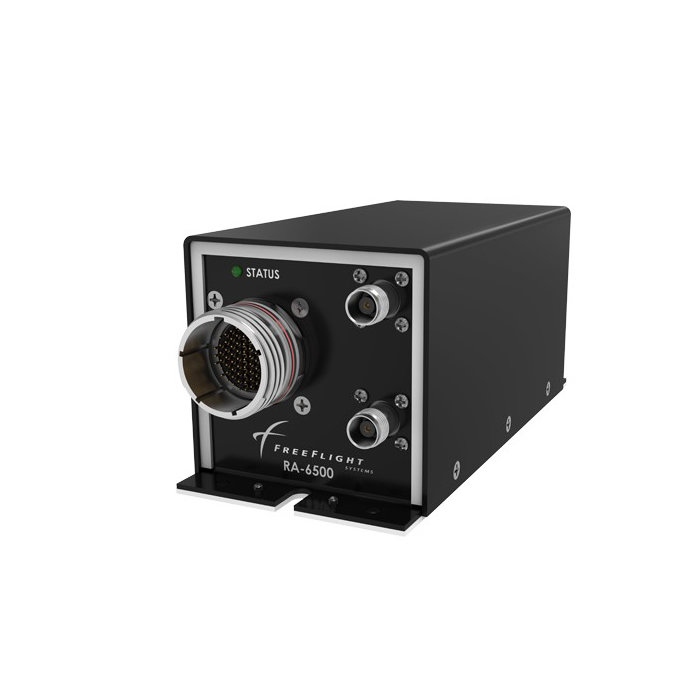

Picture of product RA6500
Part #: 87990-10
Model: RA6500
Desc: Radar Altimeter Transceiver
OEM: FreeFlight
ECCN: 7A994
Part Number :




FEATURES

  • Rugged enclosure
  • Provides enhanced features such as DSP-based RF processing design
  • TSO-certified (TSO-C87a) and approved to DO-160G, DO-178C Level B
  • Dual install capable and integrates with popular compatible glass displays and legacy analog indicators
  • Supports RS 485/422, RS-232, ARINC 429, and Ethernet connectivity





SPECIFICATIONS

FREQUENCY: FMCW at 4.2 GHz center frequency, 100 MHz sweep at 4.25 to 4.35 GHz Weight: 1.90 lb (862 g)
POWER REQUIREMENTS: 400 mA Max @ 28 VDC (steady-state) Altitude range: -20 to 2500 ft. (minimum)
SIZE: Width: 3.06 in. (77.7 mm) Depth: 6.78 in. (172.2 mm) Height: 3.15 in. (80.0 mm) ALTITUDE ACCURACY: 0 to 100 ft. ≤ ±3 feet, 100 to 500 ft. ≤ 3%, 500 to 2500 ft. ≤ 5%
SELF-TEST: Power-on self-test and recurring built-in test OPERATING TEMPATURE: -55°C to 85°C
TRANSMITTER POWER OUTPUT: 100mW, nominal, FMCW (typical) SERVICE CEILING: 55,000 ft.
ANTENNAS: Dual; response angles up to ±20° pitch, ±30° roll CONNECTORS: 2x TNC antenna connectors 1x 66 pin circular connector





Part Number: Description:
87990-10 Radar Altimeter Transceiver8







87990-10
- Radar Altimeter Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
