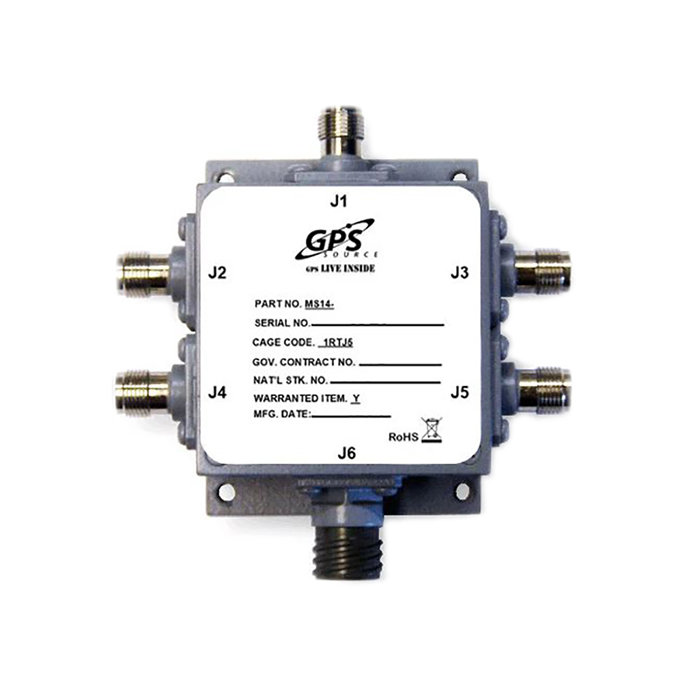

Picture of product MS14-TF
Part #: MS14-TF
Model: MS14-TF
Desc: GPS Splitter 4 Outputs (MIL SPEC, TNC, Female)
OEM: GPS Source
Part Number :

GPS Source - Company Profile on everything RF



FEATURES

  • Military qualified GPS splitter with one-input and four-outputs
  • For applications where an input from an active GPS roof antenna is split evenly between four receiving GPS units
  • Can be configured to pass DC from an RF output (J2) to the antenna input port (J1) in order to power an active GPS antenna on that port
  • Remaining RF outputs (J3, J4, and J5) would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to that port
  • Can be configured with a MIL-STD-704 compliant 28 VDC Power Supply that will power the active GPS antenna connected to J1
  • Includes waterproofing, EMI shielding, and hermetic sealing standard
  • Amplified & passive versions available
  • Passes GPS, Galileo, and GLONASS L1/L2, Protected GPS
  • Excellent Gain Flatness:   Gain | L1 - L2 | < 2 dB




Part Number: Description:
 MS14-TF GPS Splitter 4 Outputs (MIL SPEC, TNC, Female)







MS14-TF
- GPS Splitter 4 Outputs (MIL SPEC, TNC, Female)
Price Condition Status
$1,995.00 NEW OUTRIGHT REQUEST LEAD TIME
