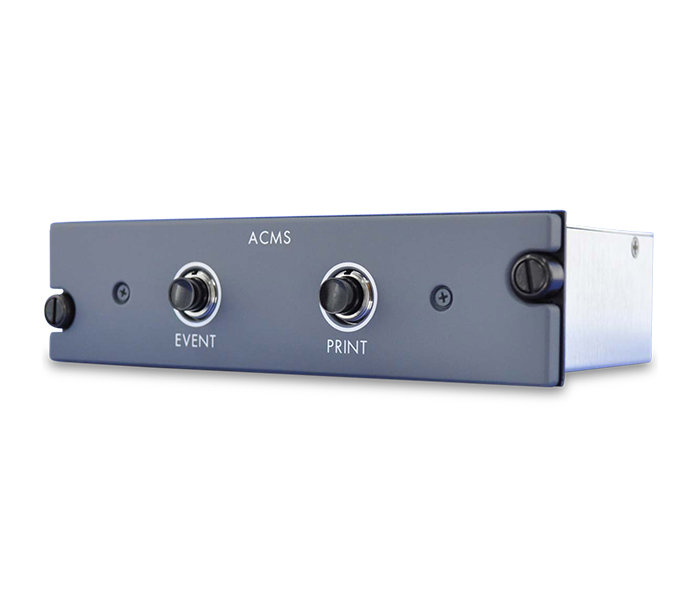

Picture of product G6986-01

Part #: G6986-01

OEM:

Gables

Desc:

ACMS Event/Print Control Panel

Part Number :

Gables Engineering


G6986-01



FEATURES

  •  G6986-01  ACMS control is certified on the B737
  • LRU for Aircraft Condition Monitoring System (ACMS)
  • Modular construction contributes to economical maintenance
  • Part of Aircraft Condition Monoriting Sytem (ACMS)
  • Modular construction contributesto economical maintenance
  • MTBF (Calculated): 20,000 operating hours



SPECIFICATIONS

Dimensions: H 1.485 x W 5.735 x D 3.0 (depth) inches, excluding rear connector certification - aircraft: PMA B737-300/400, Type Certified on B737-600/700/800/900
WEIGHT: 0.5 pounds (max) color: Front Panel – Non-Reflective Gray FED STD 595b36118,Front Panel Markings – White FED STD 595b37875 (Futura Medium font),EVENT and PRINT Push Buttons – Black
Calculated MTBF: 20,000 operating hours COnnectors: J1 Mating: MS24266R12B12S, or equivalent 12 pin connector
power: Panel Lighting – 5VAC variable electrical requirements: Panel lighting (Incandescent White)  5 VA, 1.65
Part Number: description:
G6986-01 ACMS Event/Print Control Panel



G6986-01
- Aircraft Condition Monitoring System Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
