Part #: | G7156-01 |
---|---|
Model: | G7156-01 |

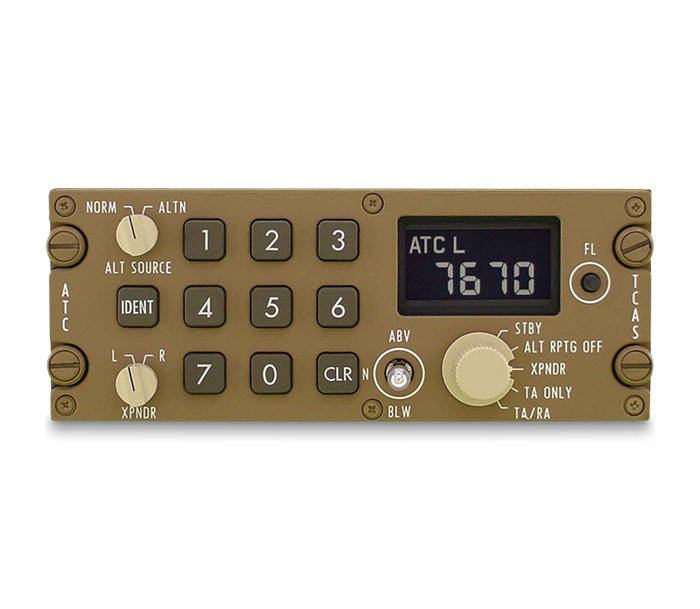

Desc: | ATC/TCAS - DUAL MODE S, KEYBOARD |
OEM: | Gables |
NSN: | |
---|---|
ECCN: |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
FEATURES
SPECIFICATIONS
Dimensions: | 2.235 (height) x 5.735 (width) x 5.0 (depth) inches, excluding rear connectors | certification - aircraft: | TSO-C139, STC on A318/A319/A320/A321 (ST04422AT) |
WEIGHT: | 2 lbs | color: | Gray, Brown, Blue/Gray |
Calculated MTBF: | 14,000 operating hours | COMPLIANCE: |
RTCA/DO-160B (Environmental), RTCA/DO-178A (Software), RTCA/DO-181 (ATCRBS/Mode-S), RTCA/DO-185 (TCAS), ARINC 429, ARINC 706, ARINC 718, ARINC 720, ARINC 735, DO-178C |
power: |
Input – 28VDC, Normal Operation – 4W max, Full Bright – 7W max |
Part Number: | description: |
---|---|
G7156-01 | ATC/TCAS - Dual Mode S, Keyboard |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
