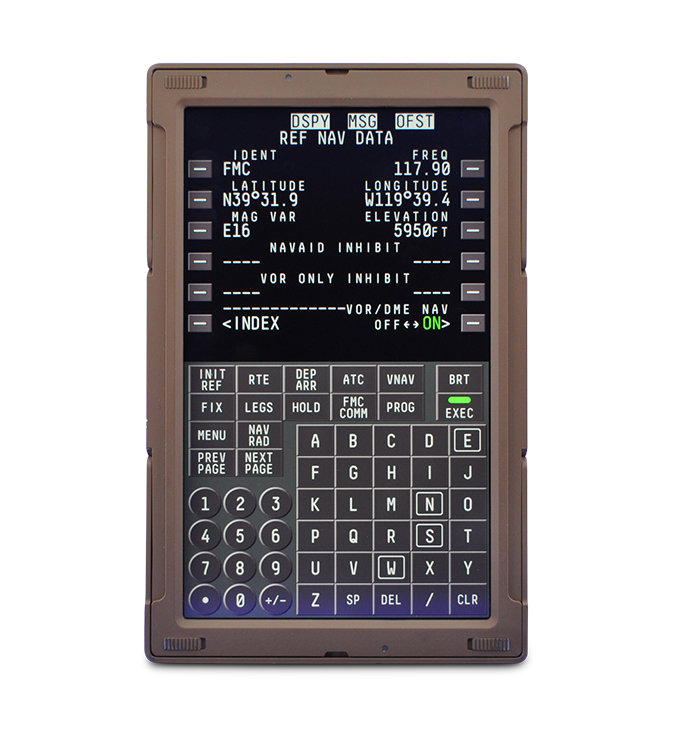

Control Display Unit

Part Number :

Gables Engineering



G7330-01



FEATURES

  • 9″ AMLCD
  • Tablet MCDU’s primary function serves as a flight deck interface to two Flight Management Computers
  •  Other subsystems supported by the Tablet include ACARS/CPDLC, SATCOM, ACMS,and electronic checklists
  • Configurable flight deck solution for a wide variety of aircraft
  • 7 ARINC 429 inputs and 1 ARINC 429 output (J1 connector)
  • 10 ARINC 429 inputs and 8 ARINC 429 outputs (J2 connector)
  • 30 discrete inputs
  • 6 discrete outputs
  • 1 RS-232 input port and 1 output port (maintenance)
  • Subpixel anti-aliasing for exceptional image quality
  • Built-in-test (BIT) with maintenance pages for enhanced diagnostics
  • Modular construction contributes to economical maintenance
  • Liquid splash-proof design
  • LED backlighting
  • Ambient light sensing
  • MTBF (Calculated): 23,000 operating hours

Future Growth

  • 2 100Base-T PoE ports
  • 1 CAN bus
  • 1 RS-232 input port
  • 1 RS-232 output port
  • NVIS compatibility







SPECIFICATIONS

Dimensions: 8.985 in/228.2 mm (height) x 5.75 in/146.05 mm (width) x 2.528 in/ 64.21 mm (max depth), excluding rear connector certification: TSO-C36e, TSO-C40c, TSO-41d, TSO-C66c, TSO-C113a, Human factors per 14 CFR part 25, AC 20-175, and AC 25-11B, Supported safety assessment through Functional Hazard Analysis, Reliability Estimate, and FMEA, MOPS per SAE AS8034B, ARINC 429, ARINC 739A
WEIGHT: 5 pounds/ 2.27kg (max) color: Boeing Brown BAC #8328, Non-reflective Gray FED STD 595b36118, Non-reflective Black FED STD 595b37038
Calculated MTBF:  23,000 operating hours COMPLIANCE:

RTCA/DO-160G (Environmental), RTCA/DO-178B Level D (Software), RTCA/DO-254 Level C (Hardware), ARINC 429, ARINC 739A

power: Power (Including all lighting) 28VDC, 7.0Watts (max) Display: Resolution – 1280 (W) x 768 (H), Screen size (diagonal) – 9 inches, Pixel configuration – R,G,B stripe, Luminance – 120 foot Lamberts, LED lighting, Contrast ratio – 500:1 (typical), Touch screen – 5-wire resistive, GFG construction
CONNECTORS: J1 Mating: MS24266R20B41SNC, or equivalent 41 pin connector, J2 Mating: D38999/26MH-355N-LC, or equivalent 100 pin connector LIGHTING: Panel/DisplayLighting (Blue/WhiteLEDs) – 0–5VAC/DC or 28VDC

Part Number: description:
G7330-01 Control Display Unit



G7330-01
- Control Display Unit
