Part #: | G7424-01 |
---|---|
Model: | G7424-01 |

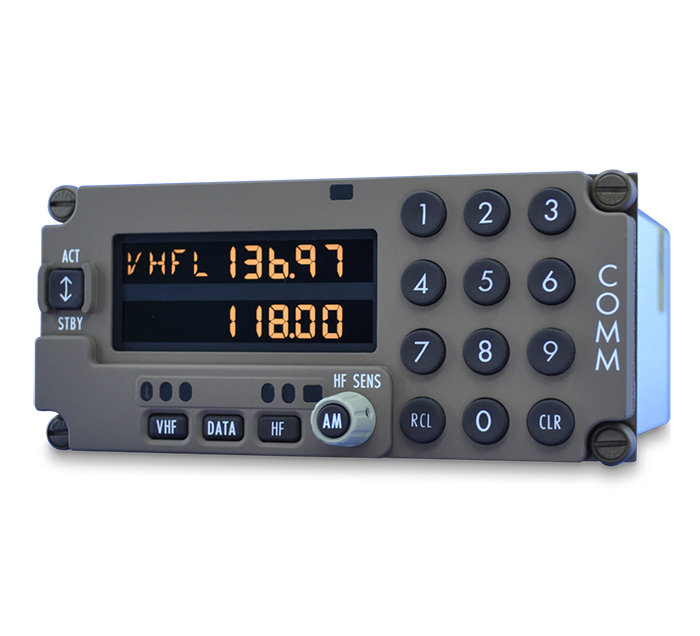

Desc: | VHF/HF DATALINK KEYPAD RTP |
OEM: | Gables |
NSN: | |
---|---|
ECCN: |
Price | Condition | Status | More Info | |
---|---|---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
|
FEATURES
SPECIFICATIONS
Dimensions: | 2.610 in/85.3 mm (height) x 5.735 in/146 mm (width) x 5.5 | certification - aircraft: | B747-8, STC Available via 3rd Party |
WEIGHT: | 2.0 lbs(Max) | color: | Boeing Brown, Boeing Gray |
Calculated MTBF: | 22,000 operating hours | Certification - Regulatory: | TSO-C31d, TSO-C32d, TSO-C37d, TSO-C38d |
power: | Power – 28 VDC, 14.0 Watts (max), Panel Lighting* (White LEDs) – 5 VAC variable, Indicator Lighting* (White LEDs) – 26.5/14 VDC dimming voltage | Frequency Range: | The default VHF frequency range is 118.00 to 136.97 MHz (136.990 MHz if 8.33 kHz spacing is selected.) The default HF frequency range is 2.0 to 29.999 MHz (29.9999 MHz if 0.1 kHz spacing is selected). |
Part Number: | description: |
---|---|
G7424-01 | Radio Tuning Panel |
Price | Condition | Status |
---|---|---|
REQUEST | NEW OUTRIGHT | REQUEST LEAD TIME |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.
In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
