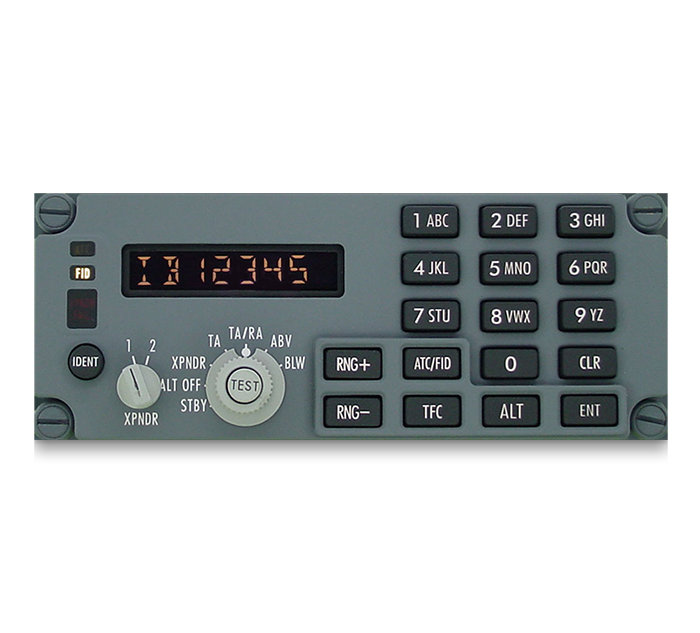

Picture of product G7490-58
Part #: G7490-58
Model: G7490-58
Desc: ATC/TCAS/FID, Dual Mode S, Keypad
OEM: Gables
Part Number :
Gables Engineering

G7490-58



FEATURES

  • Pin for pin compatible with existing (Gables) Dual Mode-S transponder control panels
  • Indicator dimming input supports Boeing, McDonnell Douglas and Airbus
  • Liquid spill-proof design
  • White LED display and panel lighting for higher reliability
  • Reverse Contrast Twisted Nematic (TN) LCD Display
  • Reliable switch design (one million actuations)
  • Built-in-test (BIT) capability
  • Flash technology to support bench-level reprogramming using a PC
  • Modular design provides flexibility for custom layouts
  • Modular construction contributes to economical maintenance
  • Dual Mode-S control panel
  • Dual set of electronics
  • MTBF (Calculated): 30,000 operating hours
  • Ident function
  • ALT OFF
  • ABV / BLW
  • RNG+/ RNG-Keys
  • TFC & ALT Keys





SPECIFICATIONS

Dimensions: 2.235 (height) x 5.735 (width) x 5.0 (depth) inches, excluding rear connectors certification: TSO-C112, TSO-C119b
WEIGHT: 2.0 lbs color: Gray, Brown, Blue/Gray, Black
Calculated MTBF: 30,000 operating hours COMPLIANCE:

RTCA/DO-160D (Environmental), RTCA/DO-178B (Software), RTCA/DO-181 (ATC), RTCA/DO-185 (TCAS), ARINC 429, ARINC 718A, ARINC 720, ARINC 735, ARINC 429, ARINC 706, ARINC 718, ARINC 720, ARINC 735, DO-178C

power: 115VAC @400H, 5w max, Panel Lighting* (white LED) – 0 – 5VAC variable *Minimal current required – only used for brightness, level, monitoring CONNECTORS: J1 Mating: M83723-75R-16247, or equivalent 24 pin cadmium plated connector
J2 Mating: M83723-75R-16248, or equivalent 24 pin cadmium plated connector
Part Number: description:
G7490-58 Flight ID/ATC/TCAS Cotrol Panel



G7490-58
- ATC/TCAS/FID, Control
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
